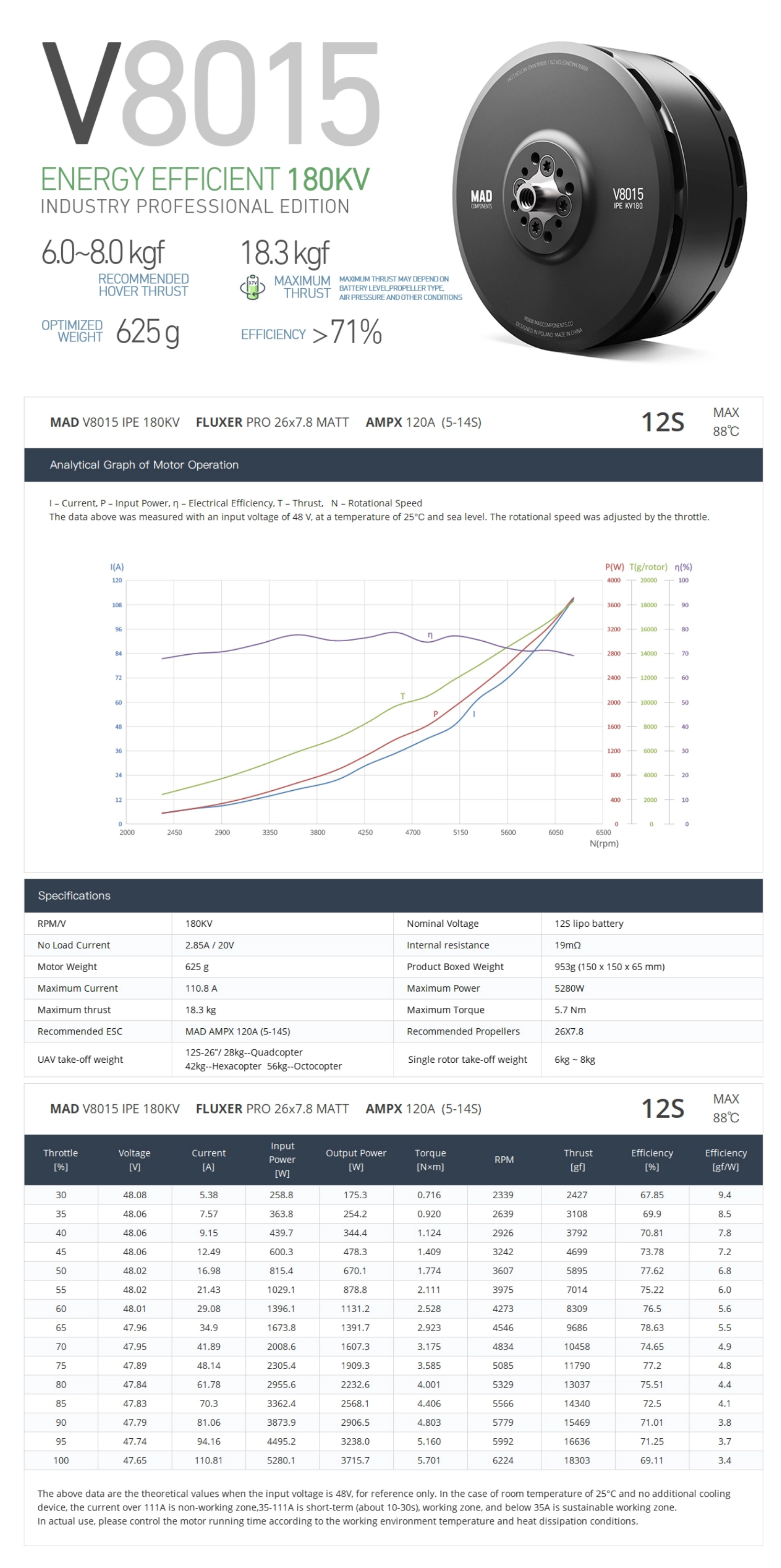

V8015 motor is the most classic product among eVTOL UAV motors. MAD V8015 IPE is one of the most efficient motors among them, and the most widely used motors for UAV of high-end aerial photography, exploration, archaeology, remote sensing surveying, mapping etc. Endurance flight time varies from 30-120min. Designed for harsh conditions Oversized durable bearings for extended motor life.
| SOLUTION | ||
| VTOL Motor/KV | VTOL Prop | VTOL ESC |
| V8015 180KV | Fluxer VTOL 26X7.8 | MAD AMPX 120A (5-14S) |
| VTOL Battery(Lipo)/Voltage | VTOL Thrust Per Motor(kg) | The recommended takeoff weight(4 rotors) |
| 12S(单节4.3V)/42-52V | 6kg ~ 8kg | 28kg |
| Note:For a coaxial configuration, a total thrust loss of 25% should be considered. | ||
