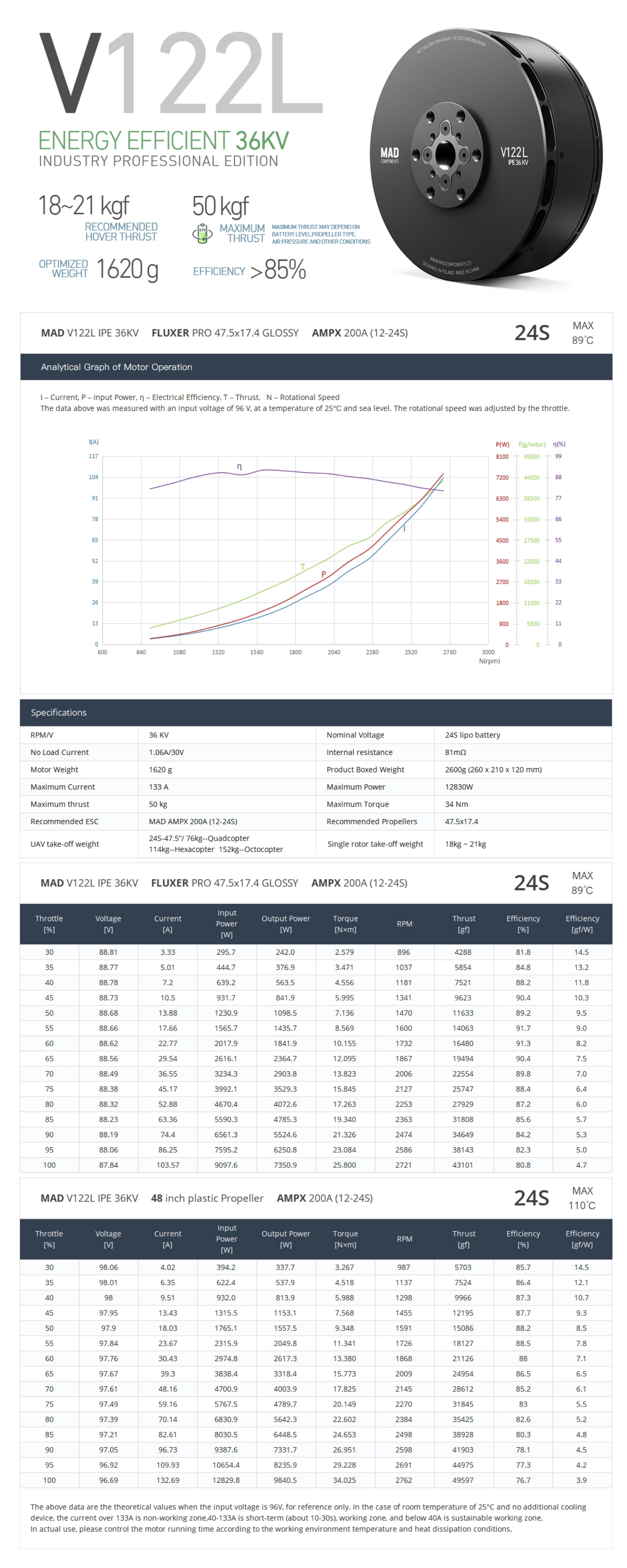

Designed to carry payloads of 18-21kg (39.6bl-46.29bl) per rotor, with 47.5″ carbon propeller. Max thrust is up to 50kg(110.23bl) per rotor, unit motor weighs only 1620g. With large pitch eVOTL CF propellers, achieving large load, high efficiency and excellent reliability, providing reliable power support for various endurance flights of professional UAVs.
| SOLUTION | ||
| VTOL Motor/KV | VTOL Prop | VTOL ESC |
| MAD V122L IPE 36KV | Fluxer VTOL 40x13.1/42x14 | MAD AMPX 120A(12-24S) |
| VTOL Battery(Lipo)/Voltage | VTOL Thrust Per Motor(kg) | The recommended takeoff weight(4 axes) |
| 24S(4.3V/S)/84-52V | 16kg ~ 20kg | 76kg |
| Note:For a coaxial configuration, a total thrust loss of 25% should be considered. | ||
