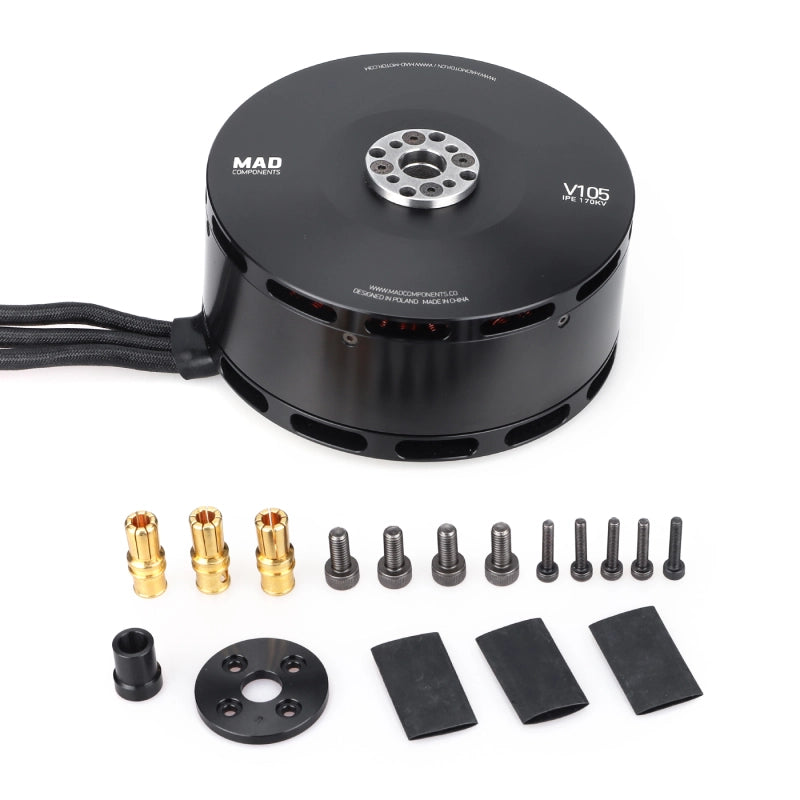

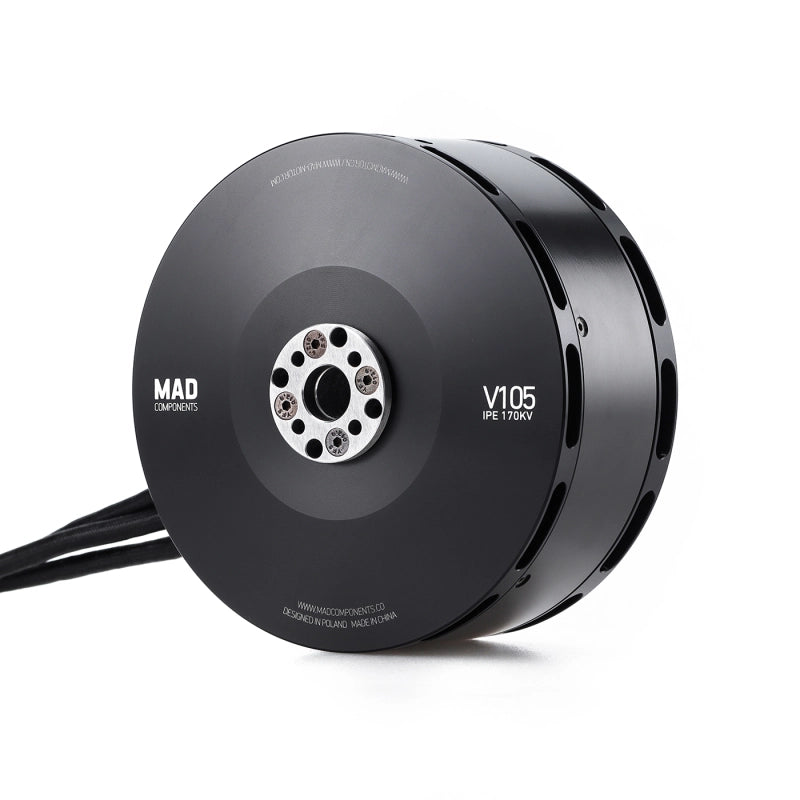

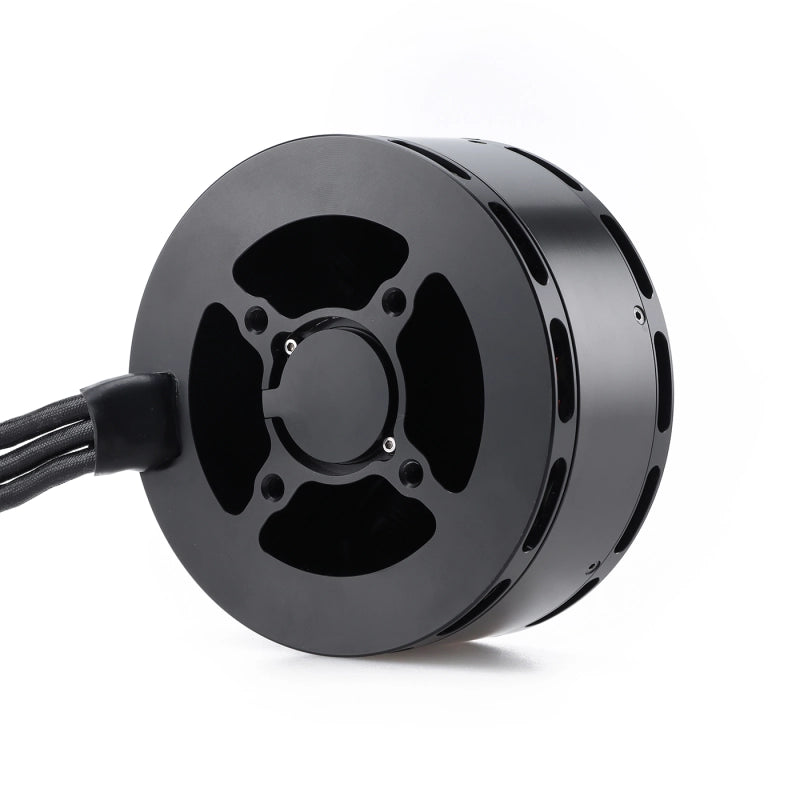

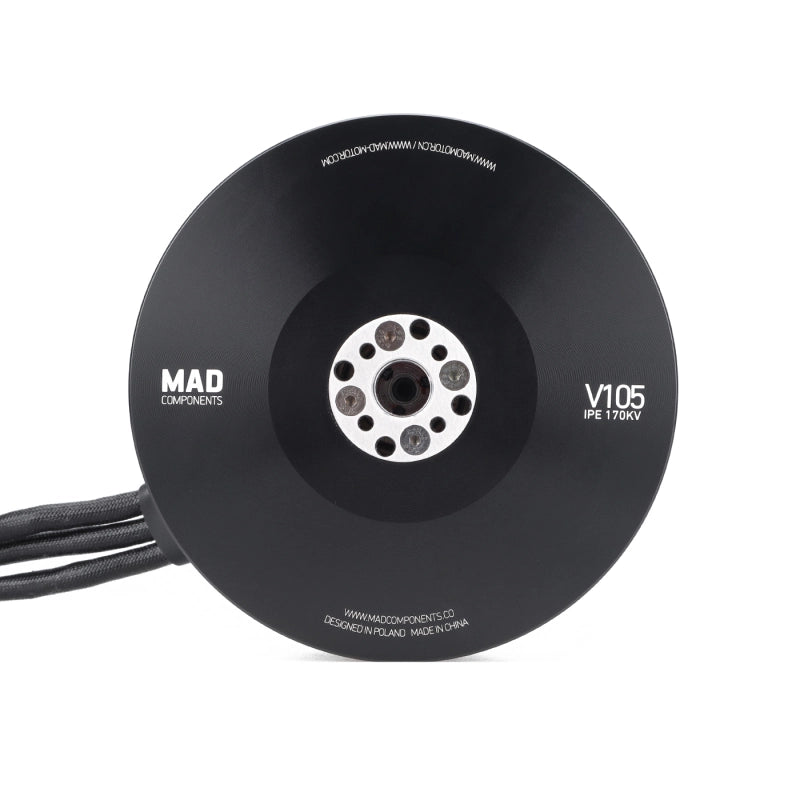

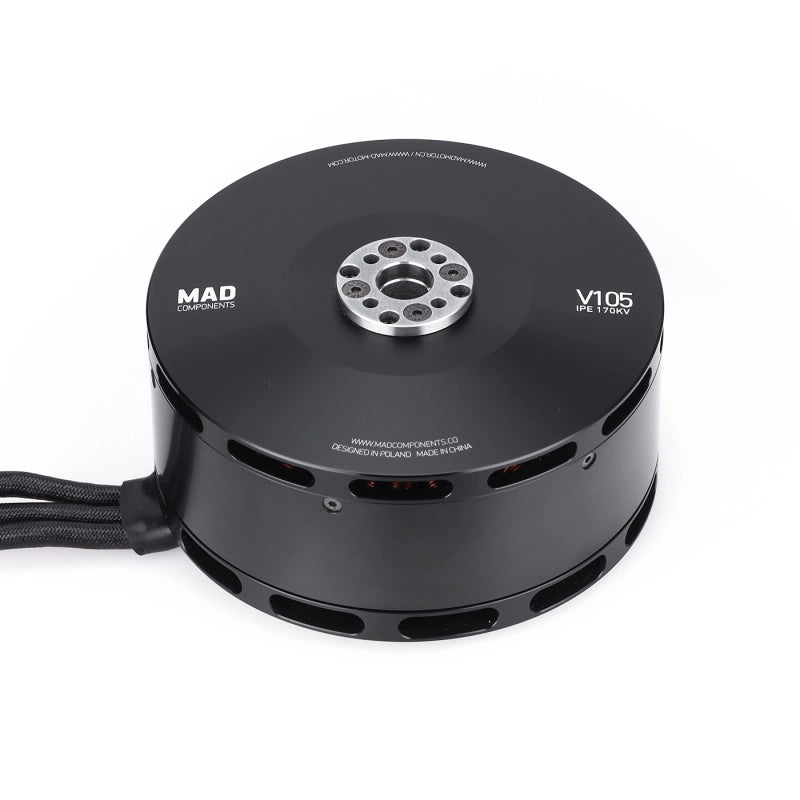

Designed to carry payloads of 10-13kg per rotor, with 30″ carbon propeller. Max thrust is up to 30.4kg per rotor, unit motor weighs only 999g. With large pitch VOTL CF propellers, achieving large load, high efficiency and excellent reliability, providing reliable power support for various endurance flights of professional UAVS.
| SOLUTION | ||
| VTOL Motor/KV | VTOL Prop | VTOL ESC |
| V105 IPE 170KV | Fluxer VTOL 29x8.7/30x10 | MAD AMPX 200A (5-14S) |
| VTOL Battery(Lipo)/Voltage | VTOL Thrust Per Motor(kg) | The recommended takeoff weight(4 rotors) |
| 12S(4.3V/S)/42-52V | 10kg ~ 13kg | 44kg |
| Note:For a coaxial configuration, a total thrust loss of 25% should be considered. | ||
