| Motor Data | |||||||||

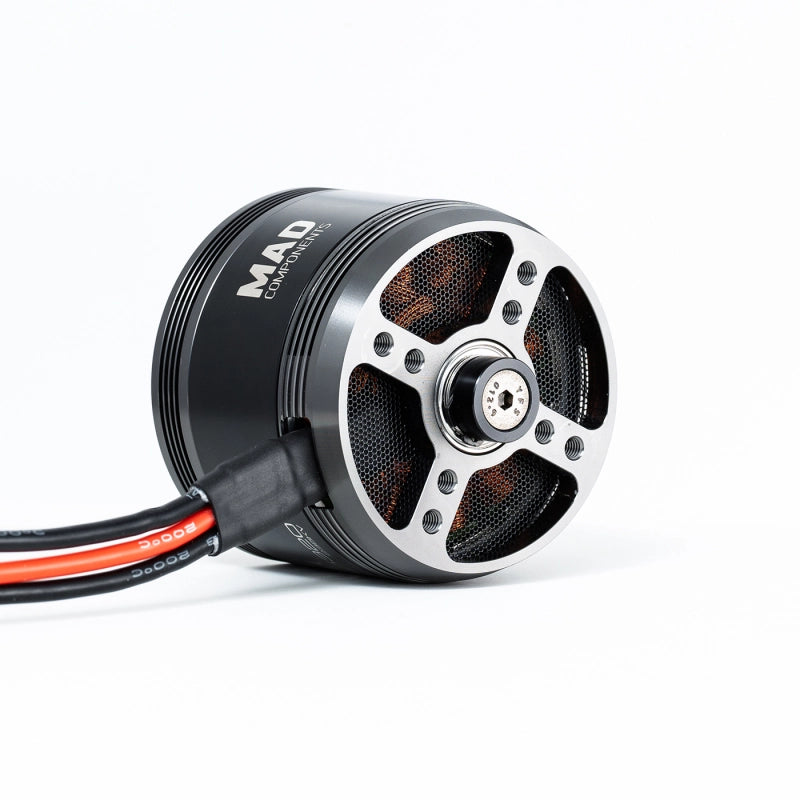

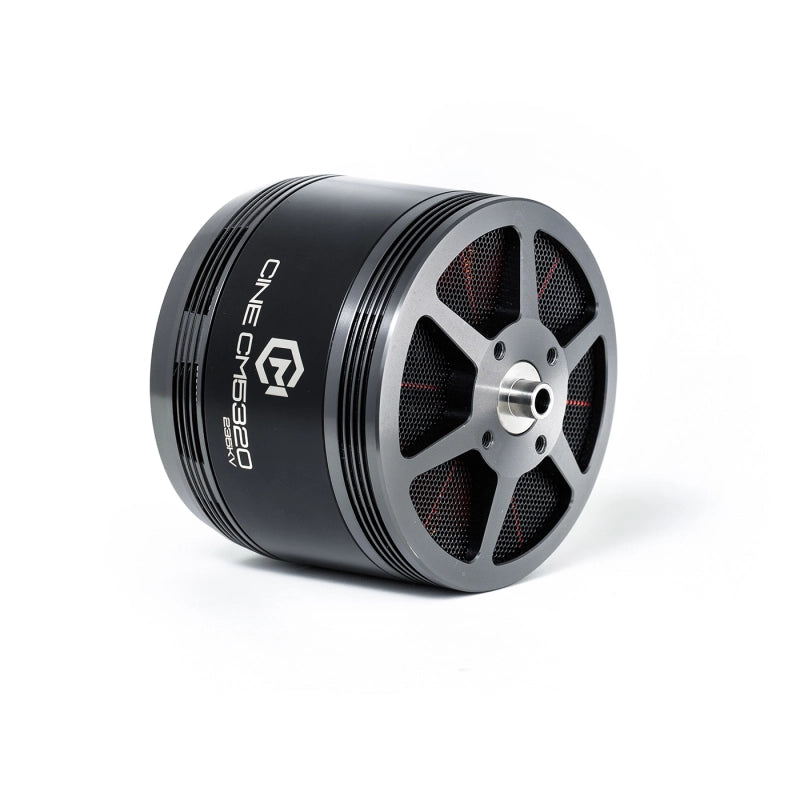

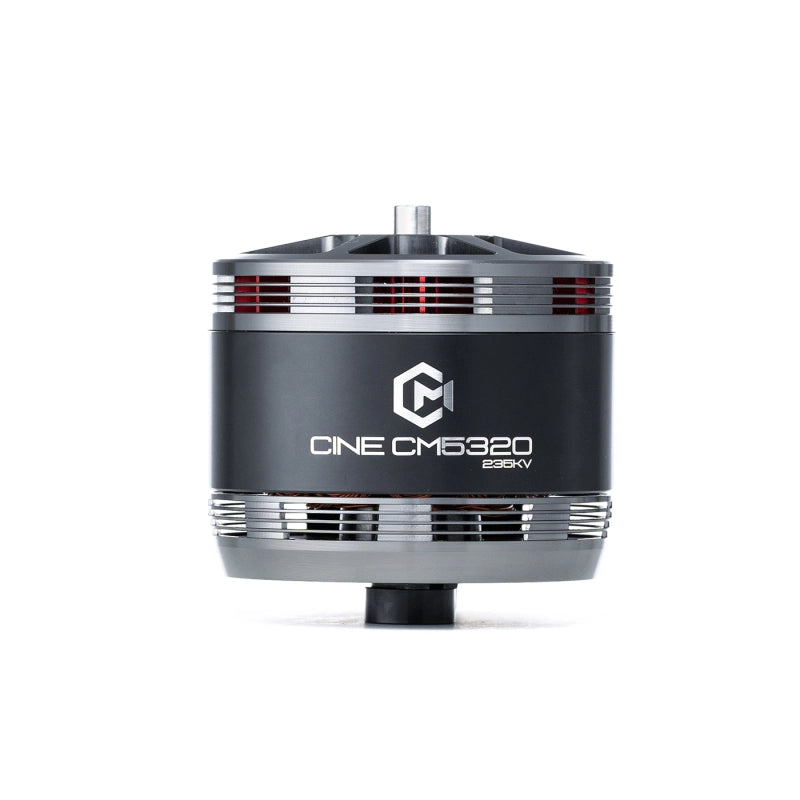

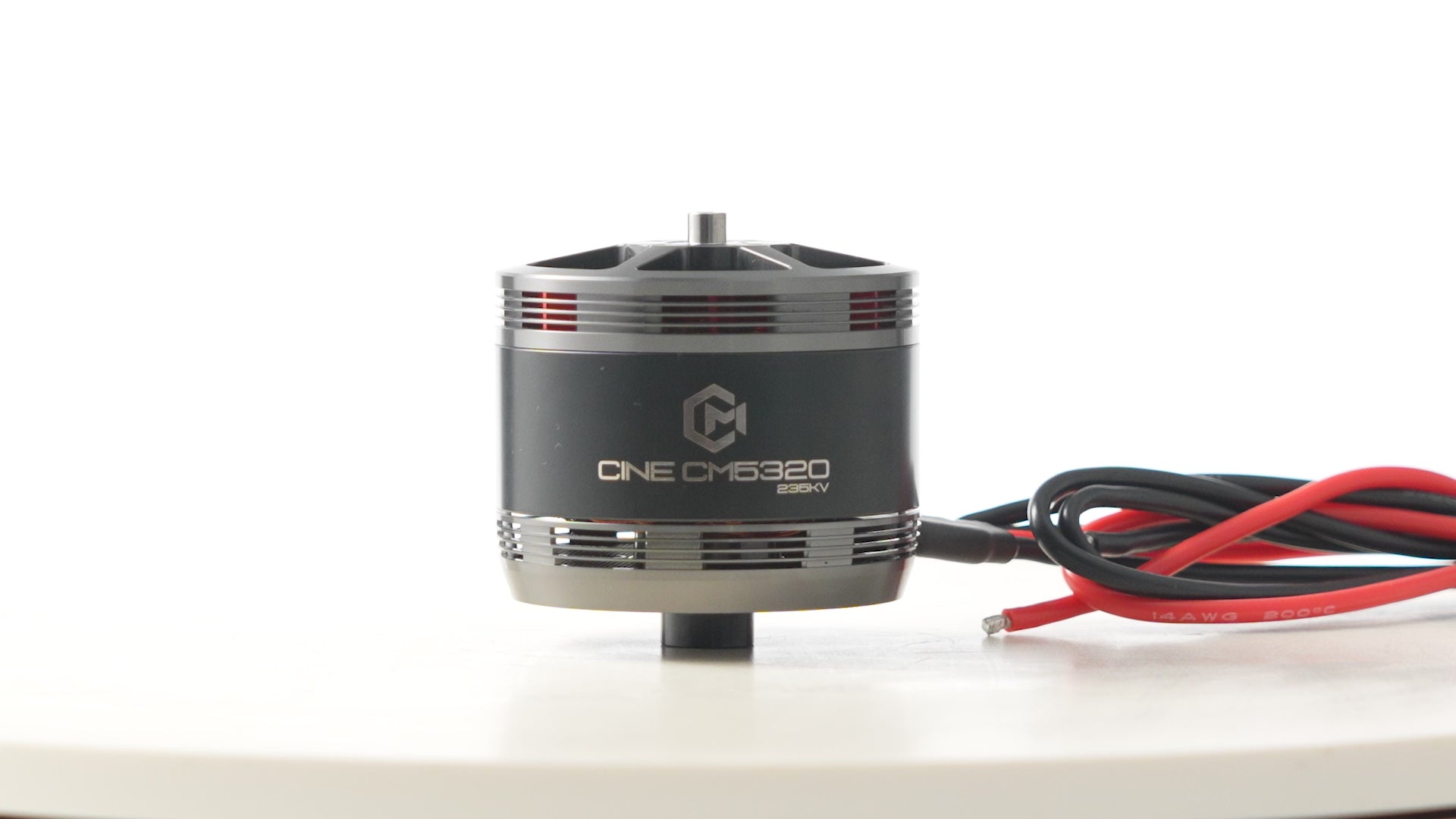

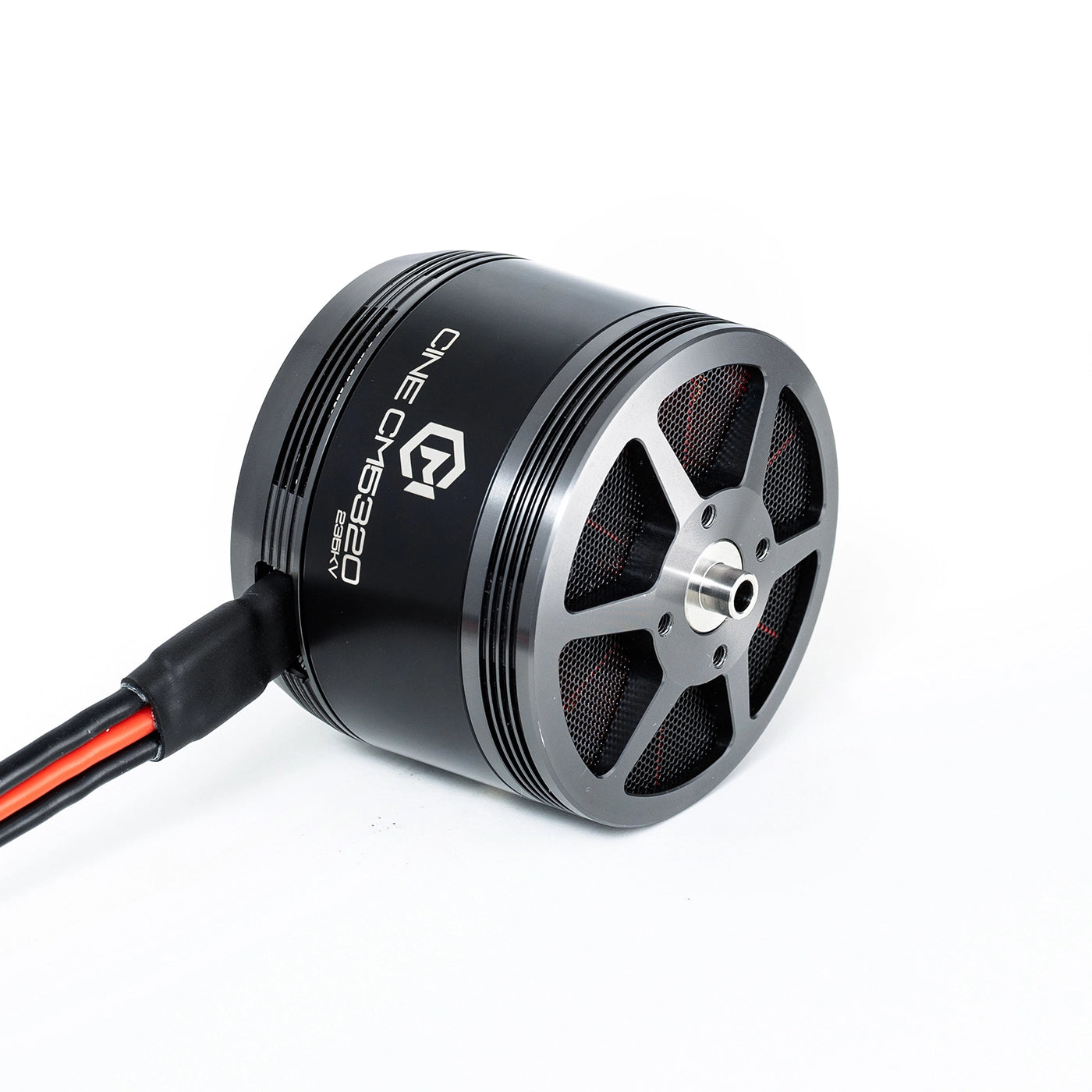

| Motor Model | MAD CINE CM5320 V1.0 | Number of pole pairs | 7 | ||||||
| Stator | Anticorrosive | Varnished wire Degree | 180°C | ||||||
| Motor Size | D: 63 × 64 mm | Magnet Degree | 150°C | ||||||
| Degree of Protection | IP45 | Cable Length | 750 mm 14# Awg(Black/Red) silicone | ||||||
| Centrifugal Heat Dissipation | YES | Rotor Balance | ≤5 mg | ||||||
| Propeller Mounting Holes | D:20 M3*4 | Motor Balance | ≤10 mg | ||||||
| Shaft Diameter | IN: 10 mm | Motor Mounting Holes | D:30 M4×4, D:44 M4×4 | ||||||
| Bearing | EZO 6800*4 | Disruptive test | 500 V | ||||||

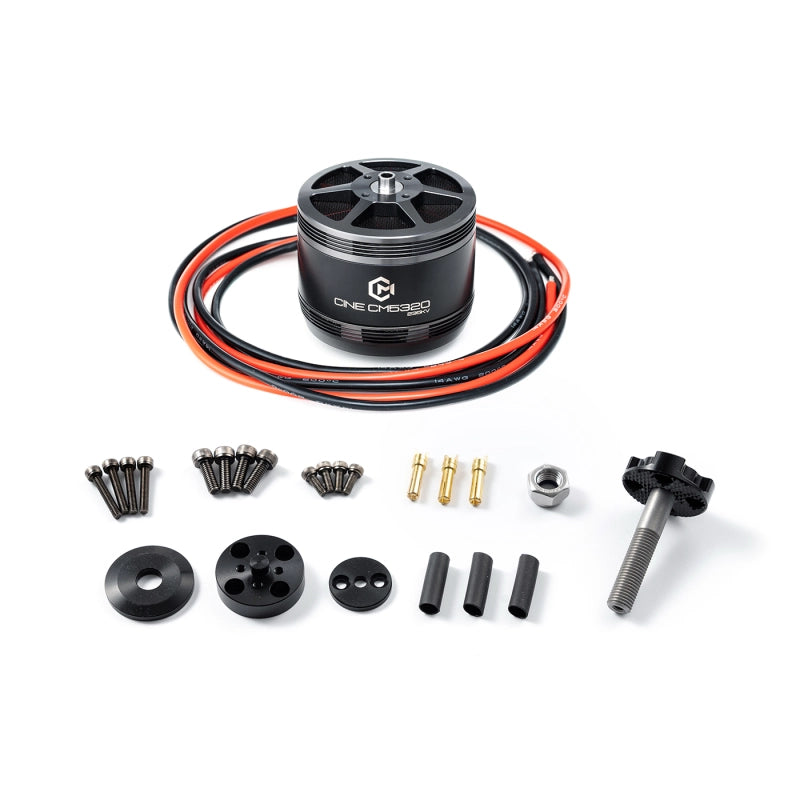

| Additional Accessories | Prop Adapter *2 , Propeller Plate *2 , 4.0mm Bullet Connector*3 , Heat Shrinkable Tube*3 , M4*12mm *4 Motor Screws M3*8mm *4 Prop Adapter Fixing Screws |
||||||||
