CUAV CAN PMU Lite Features:
1–Support 10 ~ 62V voltage input.
2–Maximum measuring current: maximum 110A.
3–Accuracy voltage and current detection: current accuracy within 80A is 0.2, voltage accuracy is 0.15V.
4–Power indicator LED : visually indicate Lipo voltage status.
Product Brief

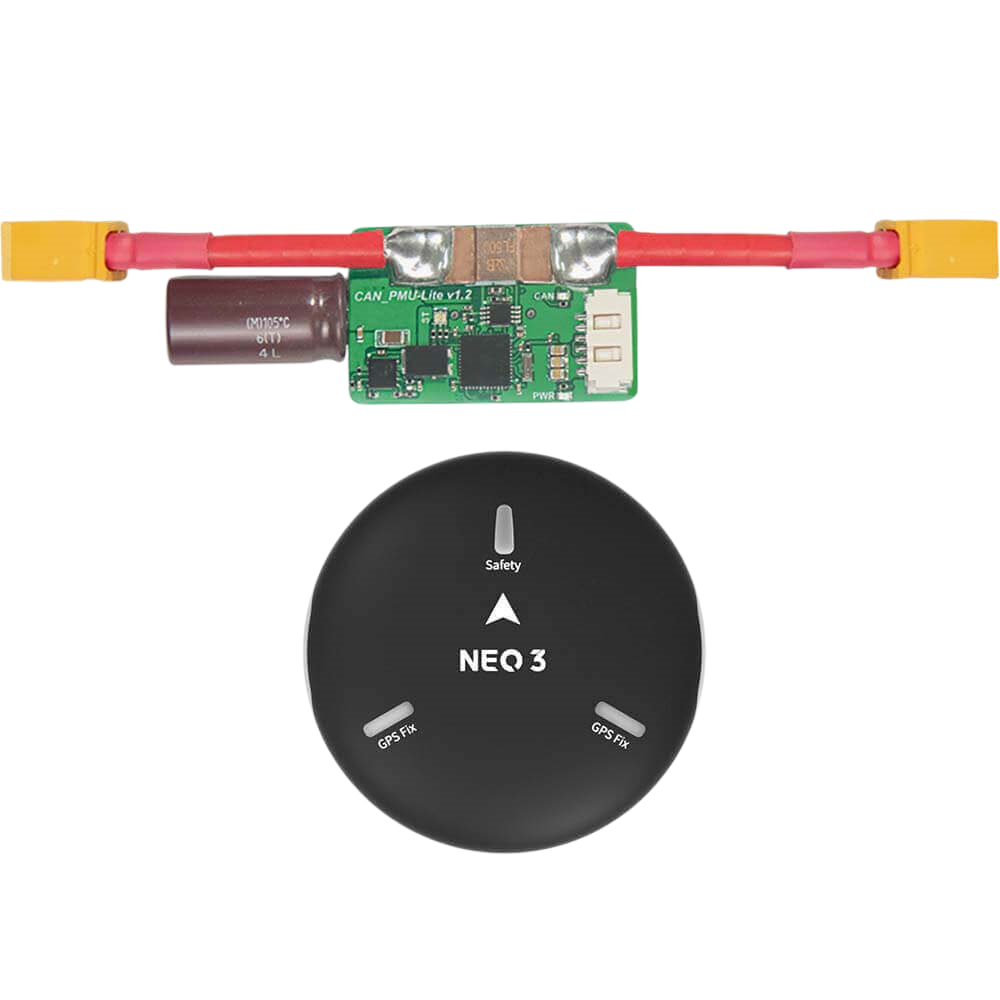

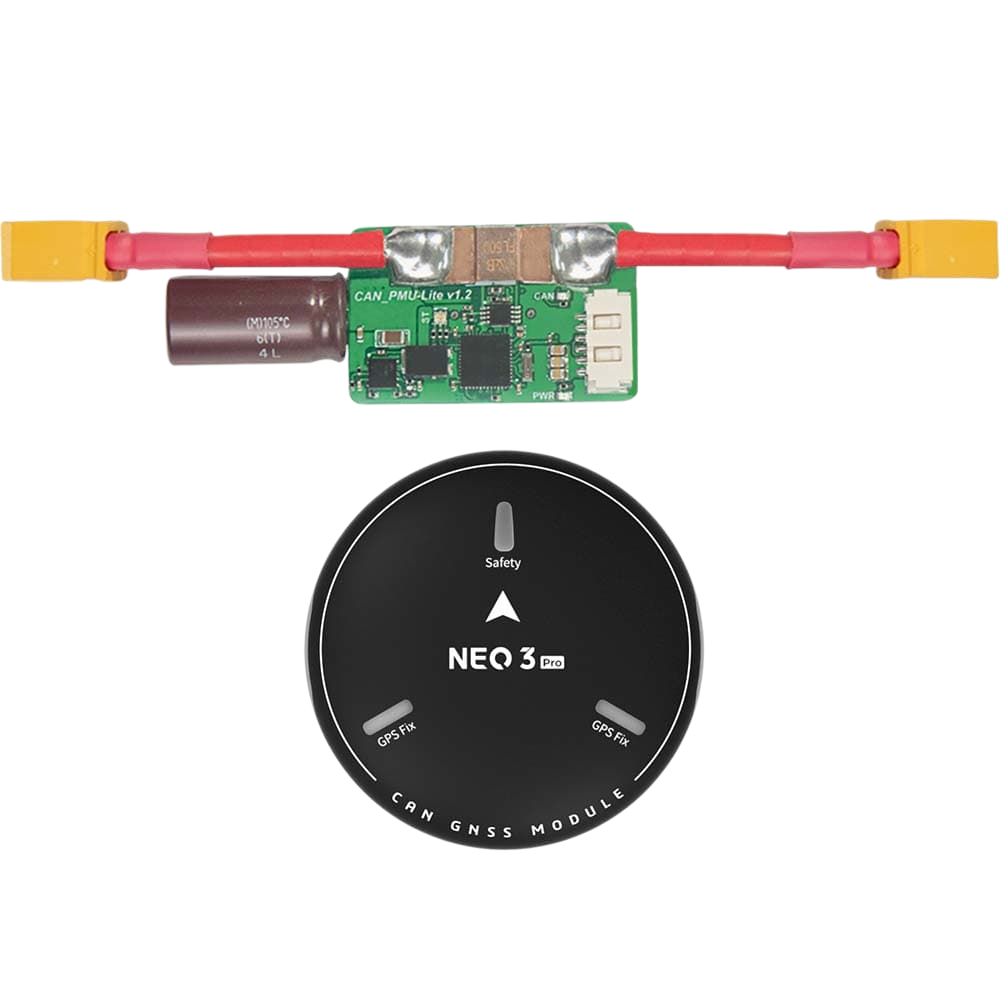

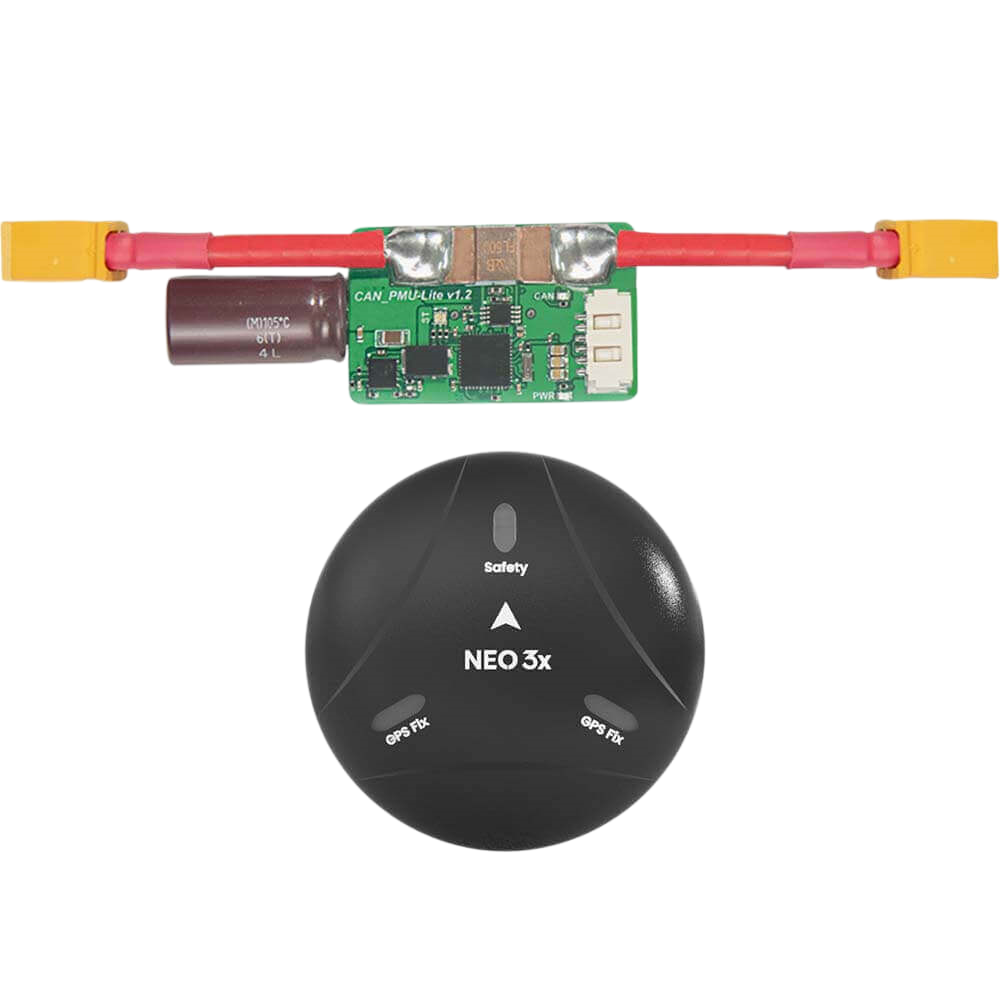

CAN PMU Lite is a CUAV standard power management module with built-in STM32F412 processor, supporting 10~60V voltage input and 5.2V/4A regulated output. Compared with HV_PM,it uses advanced CAN bus communication and supports standard UAVCAN protocol. PMU Lite has built-in ITT temperature compensation algorithm andis factory calibrated to ensure that more accurate voltage and current data can be ob-tained at different temperatures.
Product main function
1. Support 10~60V voltage input
2. Maximum passing current: maximum 90A
3. Measurement accuracy, current accuracy within 80A 0.2, voltage accuracy 0.15V
4. Regulated output: can provide up to 21W 5.2V/4A power output for peripherals
5. Power indicator LED, visually indicate Lipo voltage status
6. Future upgrades support more functions such as power consumption statistics and instantaneous power consumption push
Hardware specifications
| Processor | STM32F103CEU6 |
| Input voltage | 10-60V |
| Maximum current | 90A |
| oltage accuracy | ±0.15V |
| Current accuracy | ±0.2A |
| Resolution | 0.01A/V |
| Maximum output power | 4200W / 90S |
| Maximum stable output power | 3600W |
| 5V regulated output | Maximum 5A,stable 4A |
| letter of agreement | UAVCAN |
| Operating temperature | -20 ~ 100℃ |
| Firmware upgrade | stand by |
| Interface Type | IN / OUT: XT60-M / XT60-F Power/CAN: 502585-0670 Other: SM06B-GHS-TB |
| Product Size | 140mm (length) * 25mm (width) * 13mm (height) |
| APM firmware support | 1.Rover 3.5.1and above are available 2.Copter 3.7and above are available 3.Plane 3.10and above are available 4.Heli3.7and more available Copter3.6firmware users need toflash the3.7version firmware and then flash back to the 3.6 version |
| PX4 firmware support | PX4 Pro V1.10.1 or higher |
| Processor |
STM32F103CEU6 |
|---|---|
| Input voltage |
10-62V (2-15S Lipo) |
| Maximum current |
90A |
| Voltage accuracy |
±0.15V |
| Current accuracy |
±0.2A |
| Resolution |
0.01A/V |
| Maximum output power |
4200W/90S |
| Maximum stable output power |
3600W |
| 5V regulated output |
maximum 5A, stable 4A |
| Communication protocol |
UAVCAN |
