CUAV HOT Pitot Tube Airspeed Meter Airspeed Sensor kit
| Weight | 0.3 kg |
|---|---|
| Dimensions | 20 × 10 × 10 cm |
| MS4525 Airspeed Sensor Options |

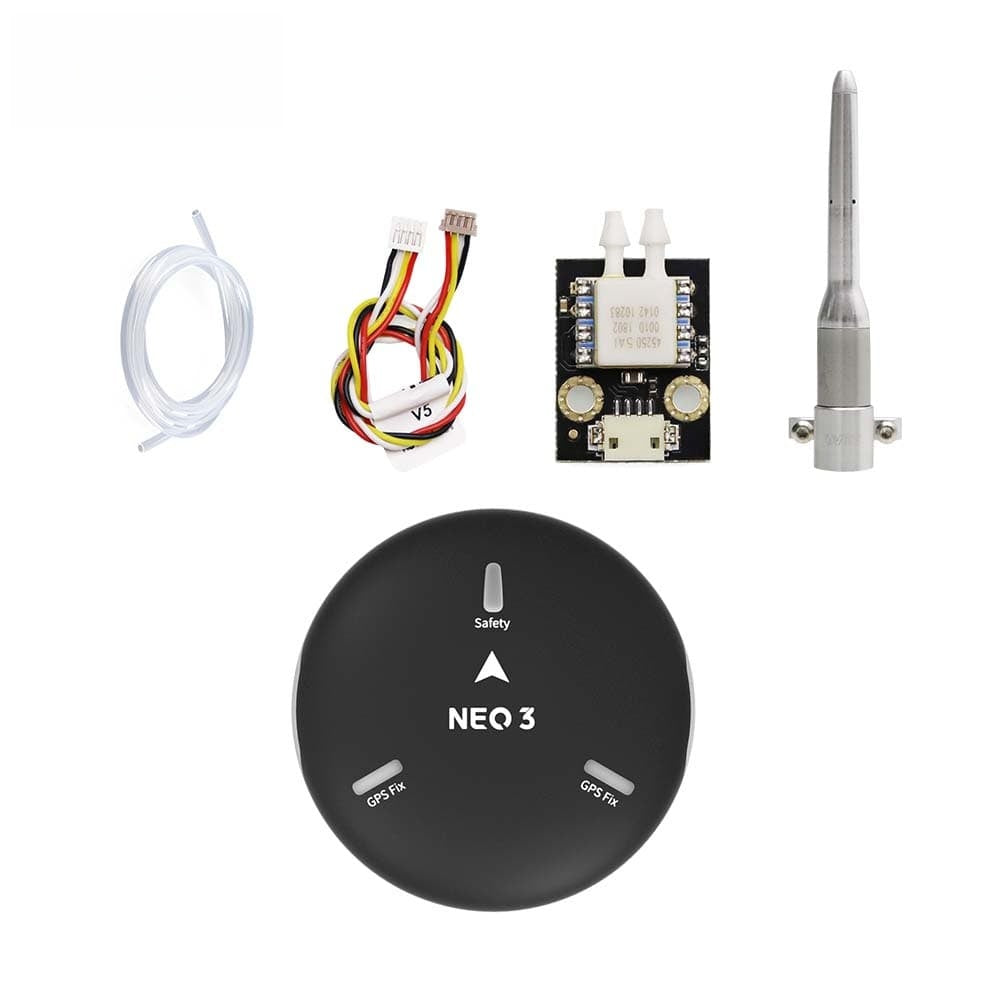

MS4525-PIX Version * 2 Pcs, MS4525-V5+and X7 Version * 2 Pcs, MS4525-V6X Version * 2 Pcs, MS4525 & NEO 3 GPS / Set, MS4525 & NEO 3 Pro GPS / Set, MS4525 & NEO 3X GPS / Set |
MS4525 Airspeed Sensor Introduction:
The MS4525 Airspeed Sensor is an airspeed measurement module launched by CUAV for fixed-wing aircraft or vertical take-off and landing aircraft. It measures the relative speed between the Unmanned System and the air, which can help the Unmanned System avoid stalling in windy conditions.
Main Parameter |
|
| Sensor | MS4525 |
| Range | ±6895Pa |
| Accuracy | ±0.25％ SPan |
| Firmware Support | ArduPilot, PX4 |
| Interface | I2C |
| Input Voltage | 4.7 ~ 5.2V |
| Working Temperature | -10 ~ 85 ℃ |
| Weight | 3g (Sensor); 28g (Set) |
