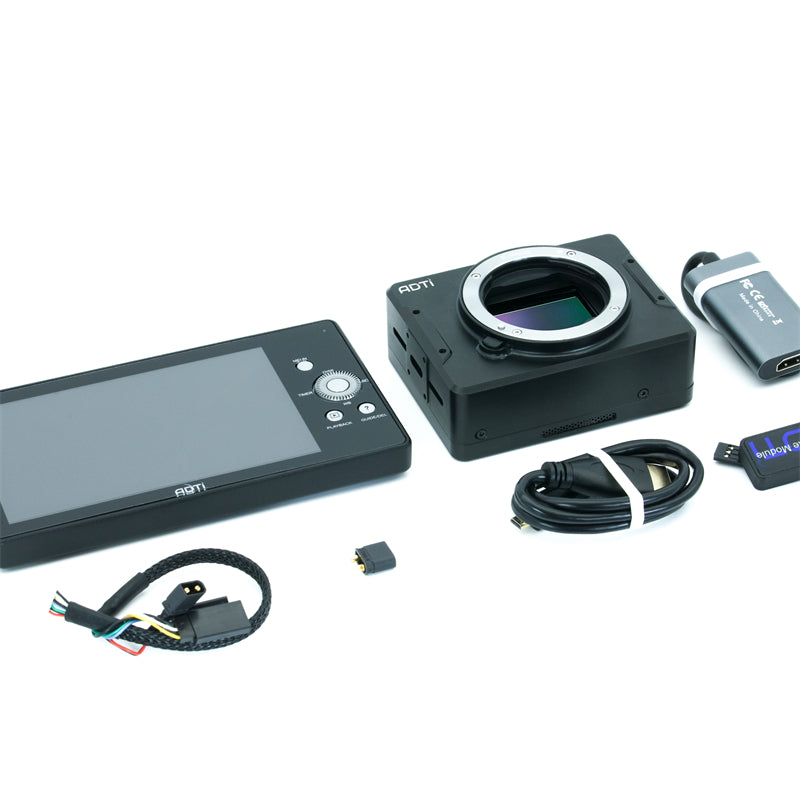

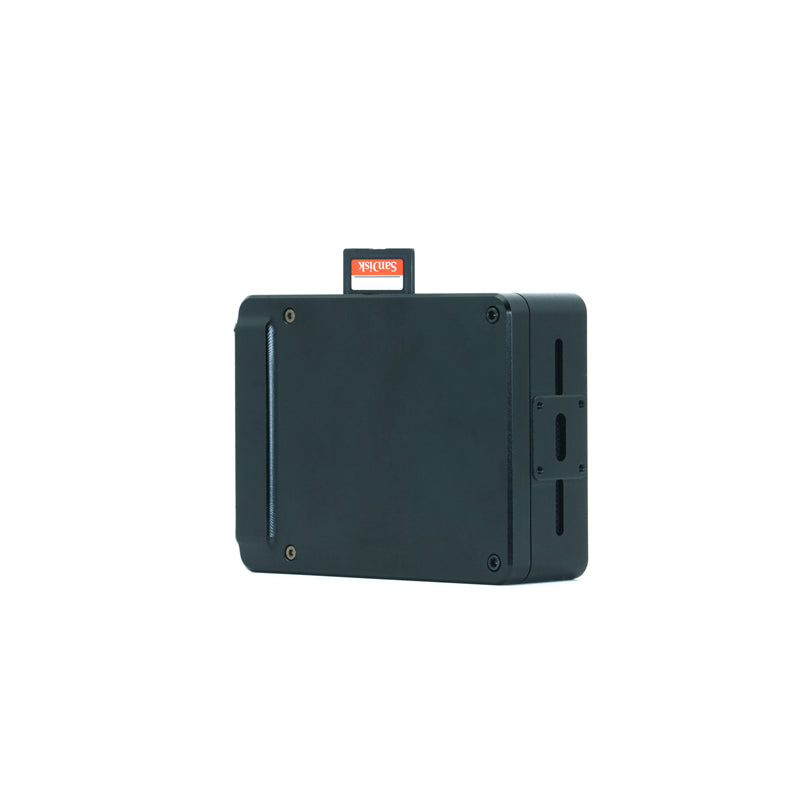

ADTi 36.4MP FULL FRAME mapping camera Surveyor 36S is a cost-effective and high quality full frame mapping camera, it is also ADTi Enter-Level lightweight full frame camera, and 36S features:
- 36.3 megapixel full-frame CMOS sensor.
- E-mount with support for FE, E, and A-mount lenses (with adapter)
- Bionz X image processor.
- Built-in Multi-Interface hot shoe output for PPK
- Top dynamic range and very low noise
- Industrial full aluminum design
- 240g weight
Image Sensor
Sensor Type:CMOS
Sensor Manufacturer:Sony
Effective Megapixels:36.4
Sensor Format:full frame
Sensor size:861.6mm2 (35.9mm x 24mm)
Approximate Pixel Pitch:4.88 microns
Focal Length Multiplier:1.0x
Aspect Ratio:3:2
Color Filter Type:RGBG
Anti Aliasing Filter:None
Color Depth （bits):25.6
Maximum Effective ISO:2,749
Image Capture
Image Resolution:
7360 x 4912 (36.2 MP, 3:2)
4800 x 3200 (15.4 MP, 3:2)
3680 x 2456 (9.0 MP, 3:2)
4800 x 3200 (15.4 MP, 3:2)
3680 x 2456 (9.0 MP, 3:2)
2400 x 1600 (3.8 MP, 3:2)
7360 x 4144 (30.5 MP, 16:9)
4800 x 2704 (13.0 MP, 16:9)
3680 x 2072 (7.6 MP, 16:9)
4800 x 3200 (15.4 MP, 3:2)
3680 x 2456 (9.0 MP, 3:2)
2400 x 1600 (3.8 MP, 3:2)
12416 x 1856 (23.0 MP, Other)
8192 x 1856 (15.2 MP, Other)
2160 x 5536 (12.0 MP, Other)
2160 x 3872 (8.4 MP, Other)
Image File Format:JPEG, RAW (14-bit ARW 2.3), RAW+JPEG
Continuous-mode frames/second:3.0
Video Capture
Video Resolution:
1920x1080 (60p(28Mbps)/60i(24/17Mbps)/24p(24/17Mbps))
1440x1080 (30p(12Mbps))
640x480 (30p(3Mbps))
Video File Format:AVCHD 2.0 / MP4
HD Video Out:Yes
HD Video Connection:HDMI
Lens & Optics
Lens Mount:Sony E
Auto Focus: Yes
Manual Focus: Yes
Display (detached)
Power: 5V DC
Buttons: Yes
Screen Size: 5 inch
Camera
Camera Size: 9.4*7.2*3.3 cm
Camera Weight: 240 g
Package Size: 30*30*25 cm
Package Weight: 700 g
Power: 10-25V DC Lipo or Liion
Operating Temperature: -10 to 40°C
