Unmanned RC

PM06D Power Module (14S)

Out of stock
No reviews
Usually ships within 24 hours
$40.00
Product details
  • Vendor Unmanned RC

Do you have questions about this product?

Ask an expert!

Description Shipping information Reviews (0)

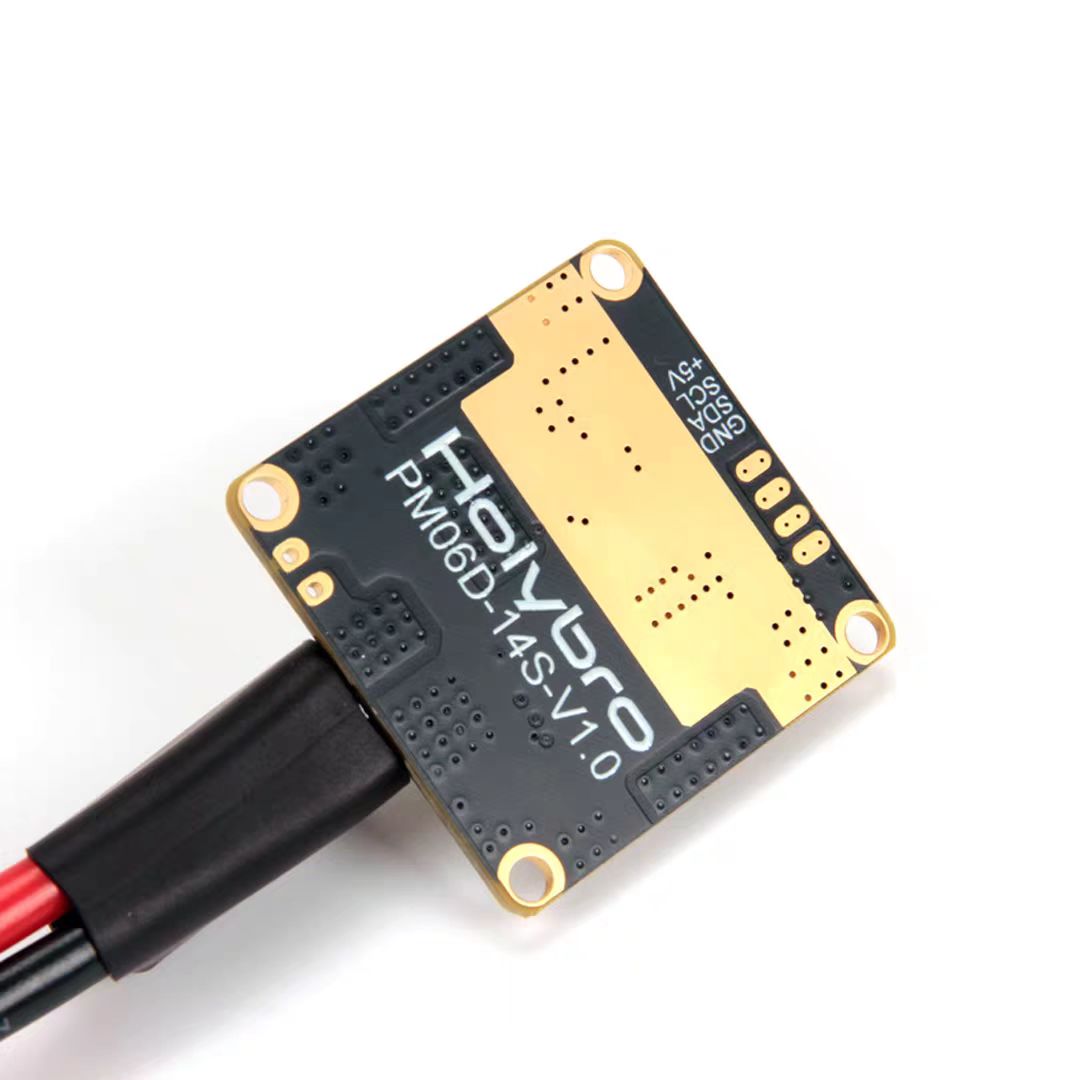

This PM uses I2C digital signal data output, only compatible with Pixhawk 5X/6X series.

PM06D provides regulated power supply for your Pixhawk® 5X & 6X from the battery, as well as current consumption and battery voltage measurements, all through a 6pin cable. It has built-in power distribution, allowing you power your ESC and FC with the same board.

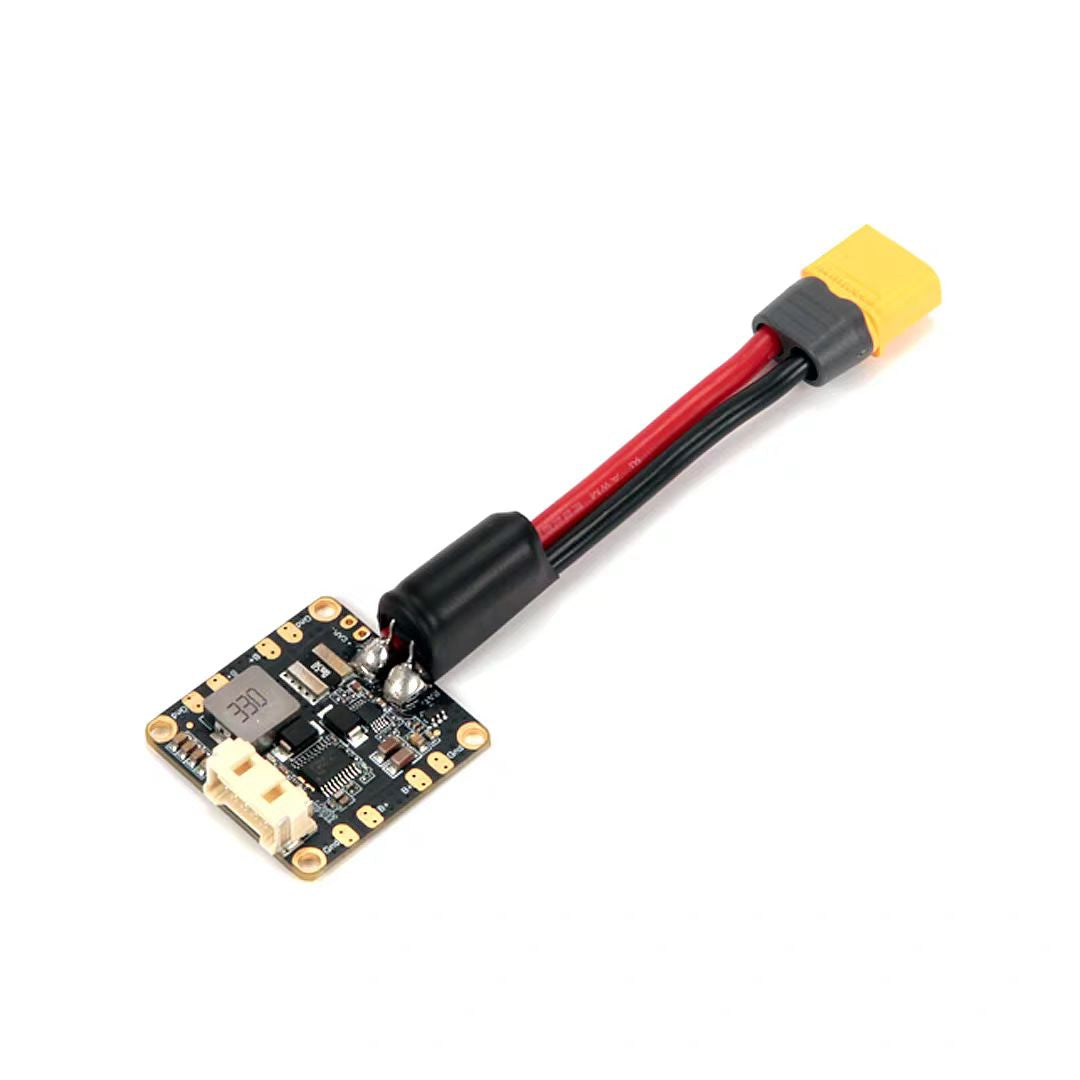

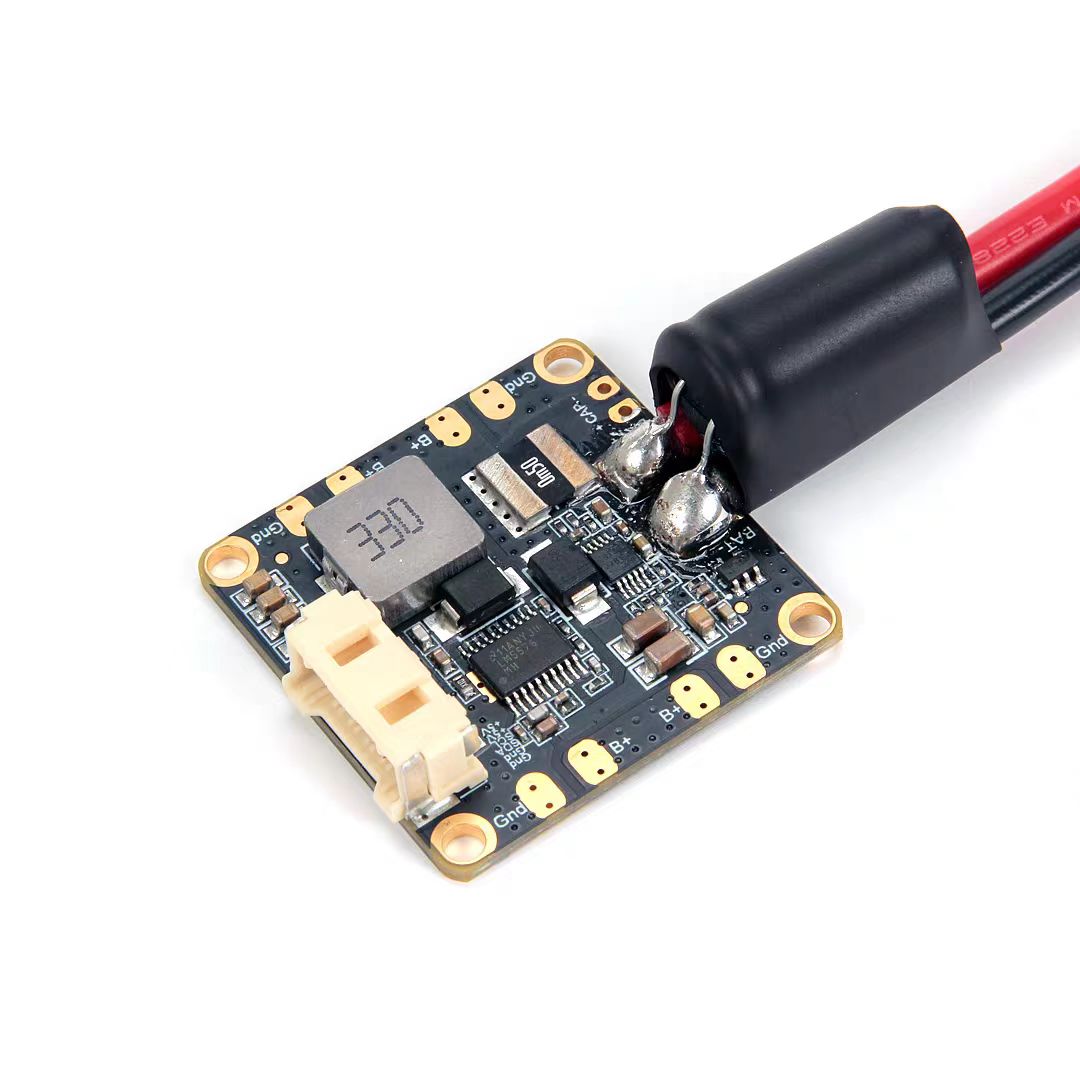

The on-board switching regulator outputs 5.2V and a maximum of 3A from LiPo batteries up to 14S. The Power Module comes completely assembled with a XT60 connector and a capacitor. The Molex 2.00mm pitch CLIK-Mate Wire-to-Board connector is rated for 3.0A current per contact.

Specification

  • Input voltage: 2S- 14S
  • PCB Cont. Current Rating: 70A
  • PCB Burst Current Rating: 120A (<60 Sec)
  • Max current sensing: 327A
  • Voltage and current monitor with I2C compatible interface
  • Connector Outputs: 5.2V and 3A max

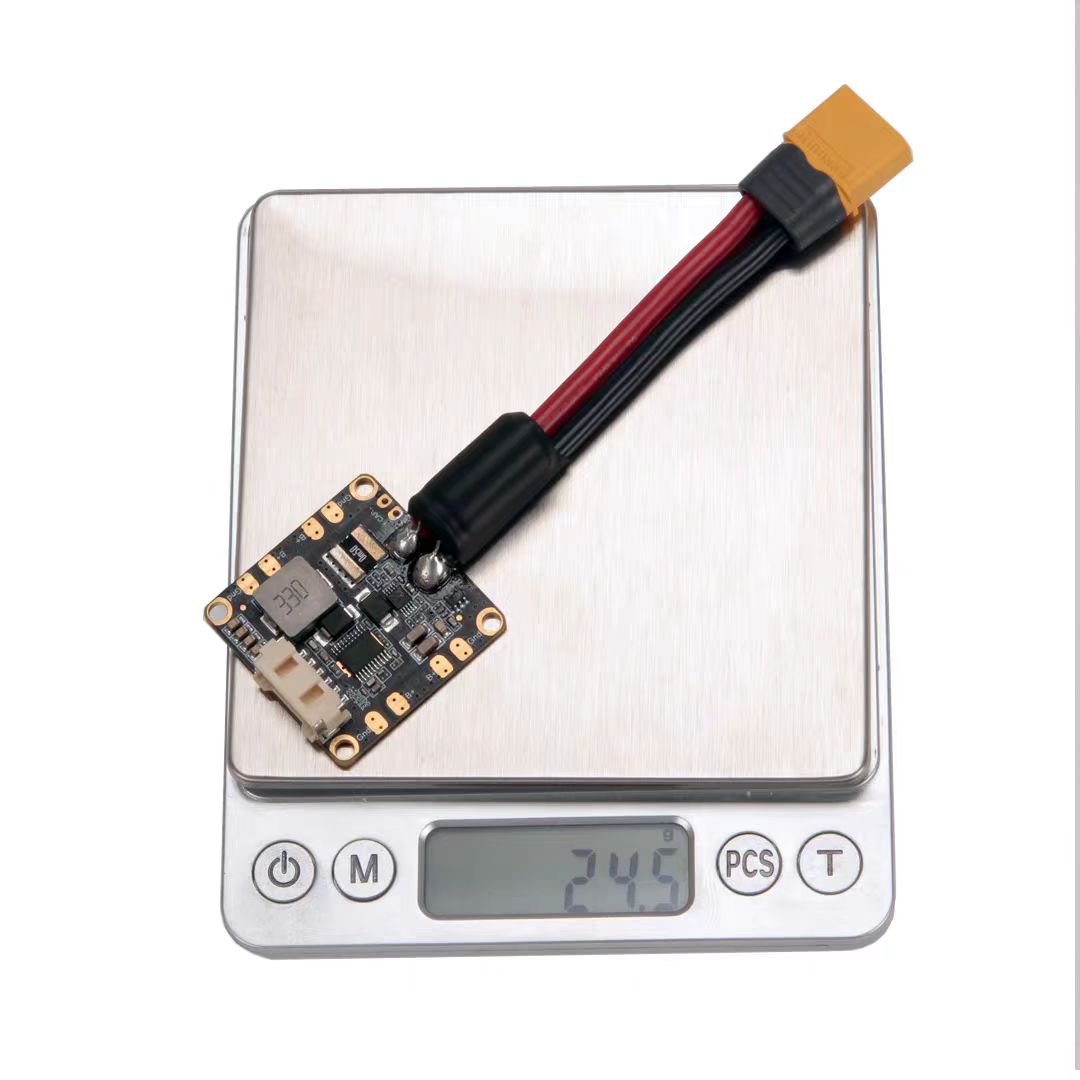

  • Weight: 24.5g

Current Rating:

The PM06D comes with XT60 plugs with 14 AWG silicone wires rated for 30A continuous current and 60A burst current (<1 minute). If a higher current is needed, the plug type and wire size should be changed accordingly.

PX4 Parameter Setup:

If you are using the PM06D 14S version, you must set SENS_EN_INA228 to enable.

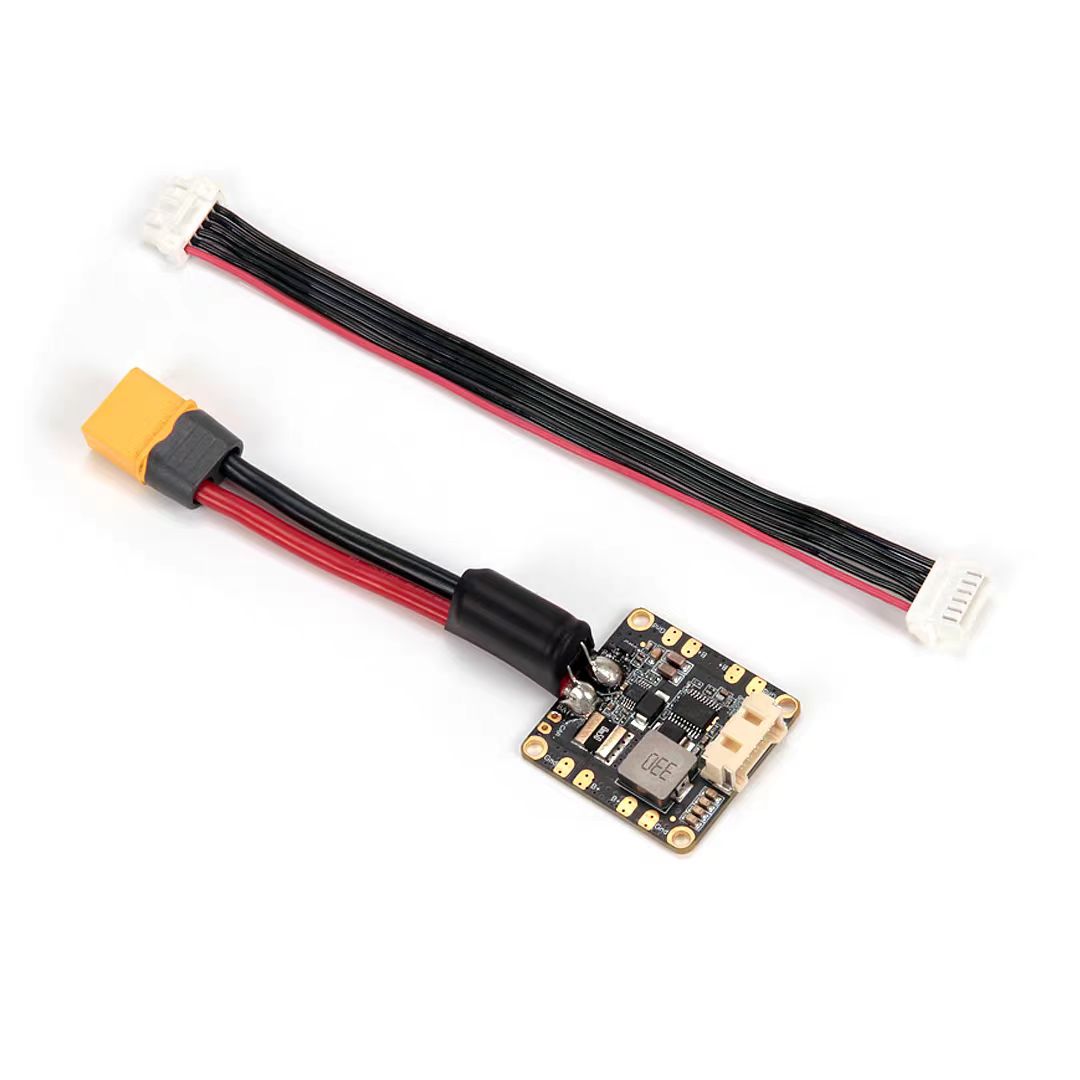

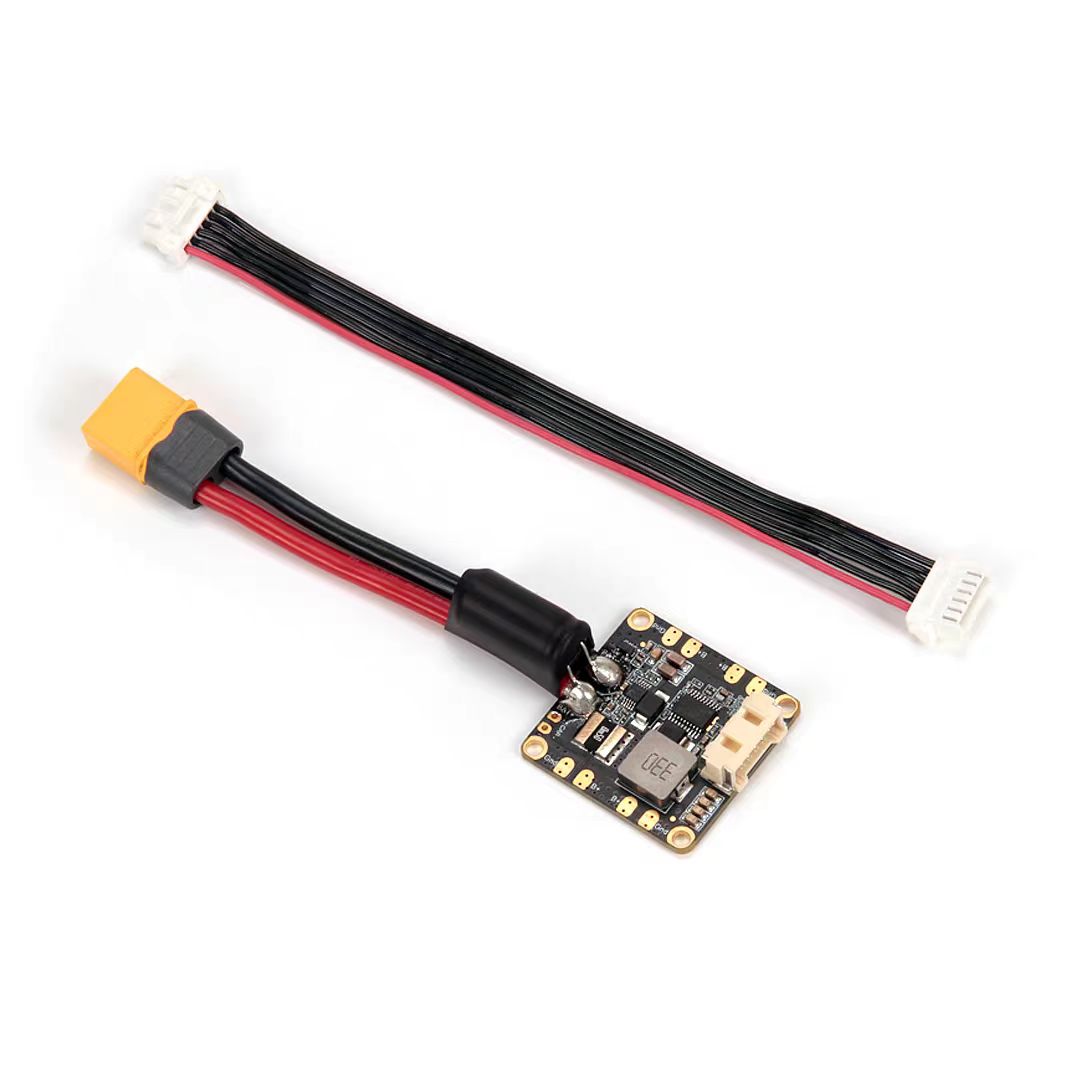

Package Includes：

1x  PM06D Power Module
1x  6pin 2.00mm pitch cable
