Unmanned RC

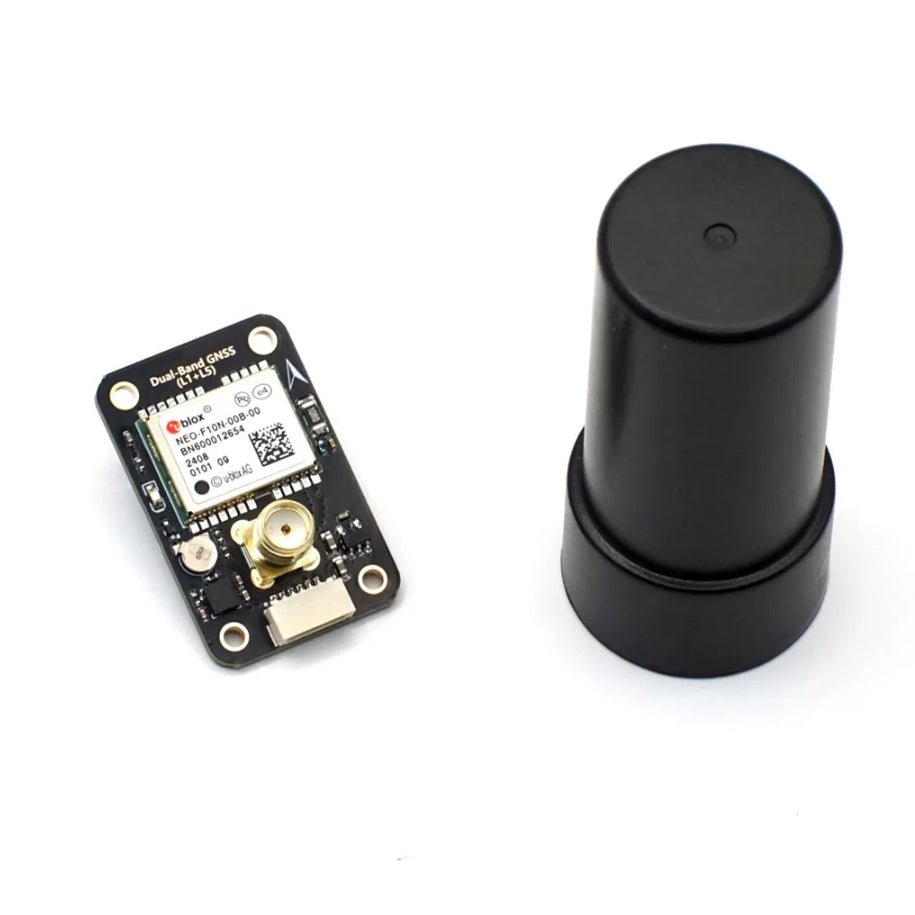

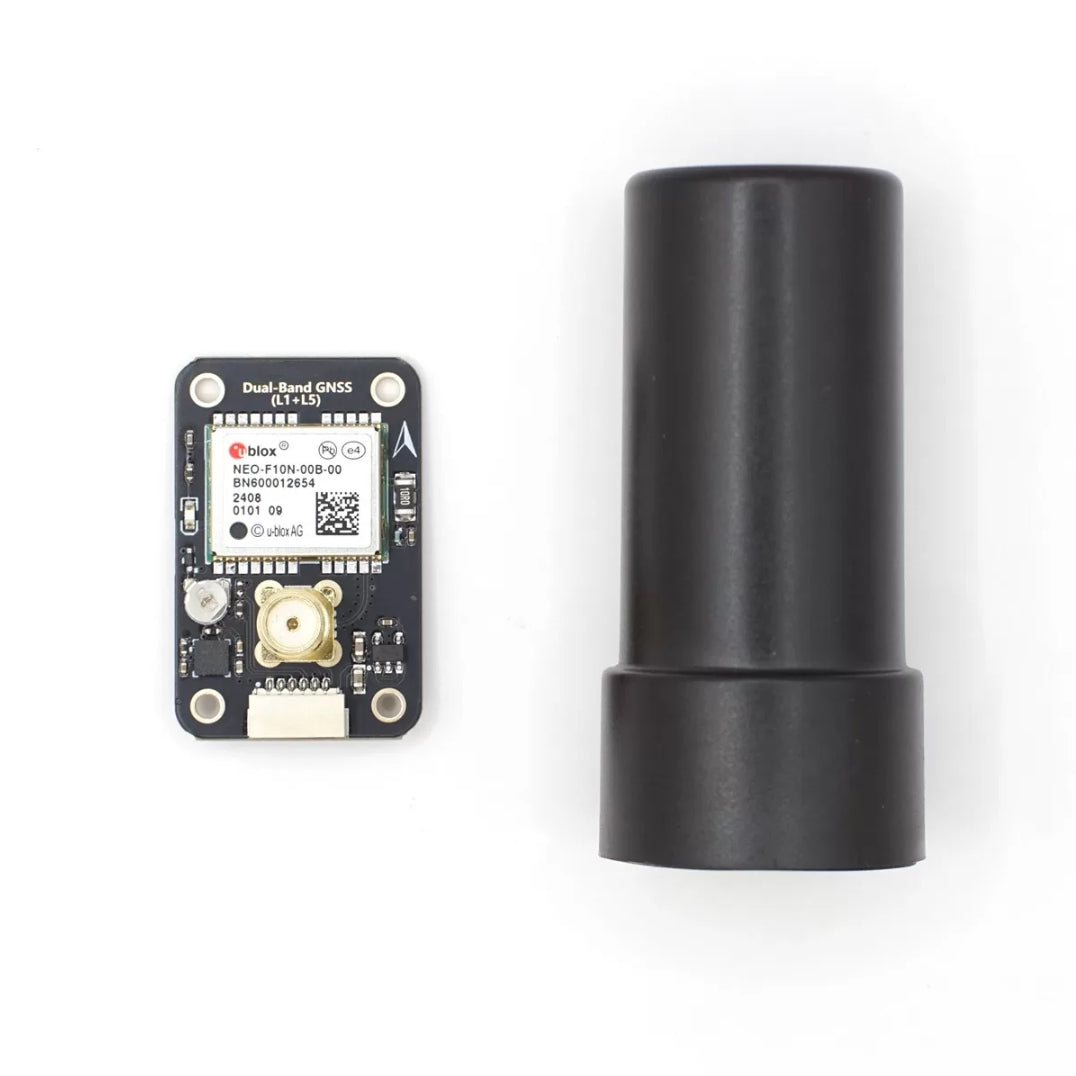

L1+L5 Dual Band GNSS with IST8310 Compass

In stock
No reviews
Usually ships within 24 hours
$198.00
Product details
  • Vendor Unmanned RC

Do you have questions about this product?

Ask an expert!

Description Shipping information Reviews (0)

Specifications

  • GNSS Receiver: UBLOX NEO-F10N
  • Compass: IST8310
  • GNSS Band Support: L1 (1575.42MHz) / L5 (1176.450MHz)
  • GNSS System Support: GPS/QZSS L1C/A, L5; Galieo E1-B/C , E5a; BeiDou B1C, B2a; NavIC SPS-L5;
  • Concurrent: 4 (GPS/QZSS;BeiDou;GAlieo;NavIC)
  • Max Navigation rate: 10Hz
  • Input Voltage: 5V
  • Working Current: 30mA (without antenna); 55mA(with antenna)
  • Interface(GPS): UART (3.3V LVTTL)
  • Interface(Compass): I2C
  • UART Baudrate: 38400 (Chip Default); 115200 (Factory Default)
  • Output Protocol: NMEA (Chip Default); UBX-PVT (Factory Default)
  • PPS LED: Blue (Solid ON after powering on, blinking(1Hz) when GNSS get 3D fix)

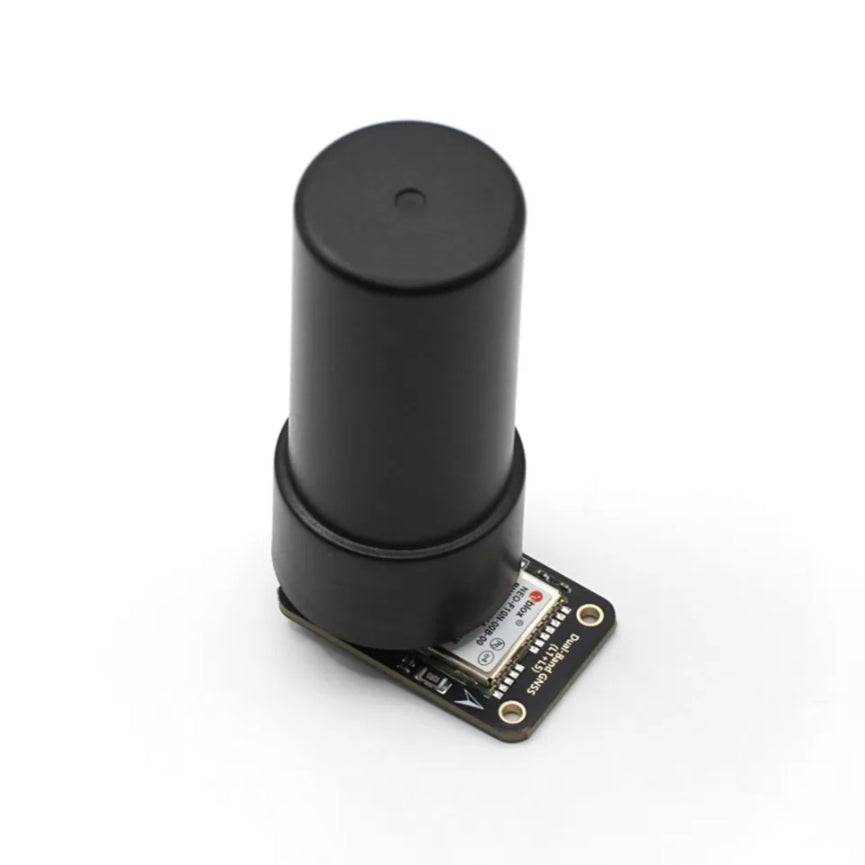

Quad Helix Antenna

  • Full Band Support: GPS/QZSS L1/L2/L5, Galileo L1/E5/E5a/E5b, GLONASS G1/G2/G3, BeiDou B1/B2a/B2b
  • LNA Gain: 38dB
  • Input voltage : 3.0 – 5.5V
  • Dimensions: Ø28mm * 59.3mm
  • Connector: SMA

Flight Controller Firmware Required

  • Ardupilot: >=4.4.0
  • PX4: >= 1.14.0



Physical

  • Mounting: 28 x 16mm, Φ2mm
  • Dimensions: 34 x 22 x 13.4 mm
  • Weight: 6g (without antenna); 21g (with antenna)
