Holybro Autopilot Flight Controllers -Kakute F4 V2.4 (MPU6000)

Out of stock
No reviews
Usually ships within 24 hours
$49.00
Product details
  • Vendor Unmanned RC

Do you have questions about this product?

Ask an expert!

Description Shipping information Reviews (0)

Description:

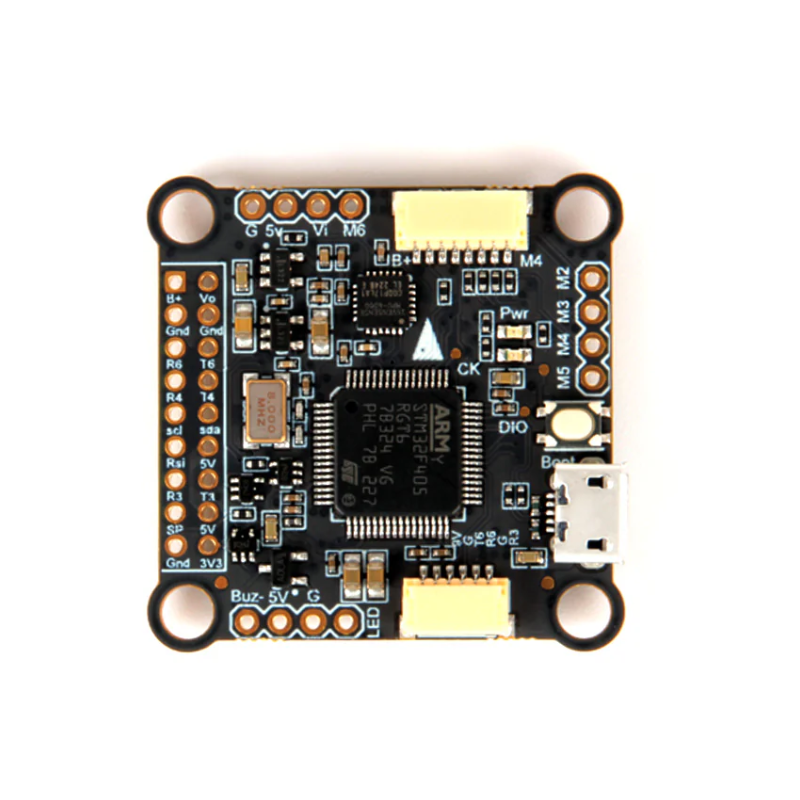

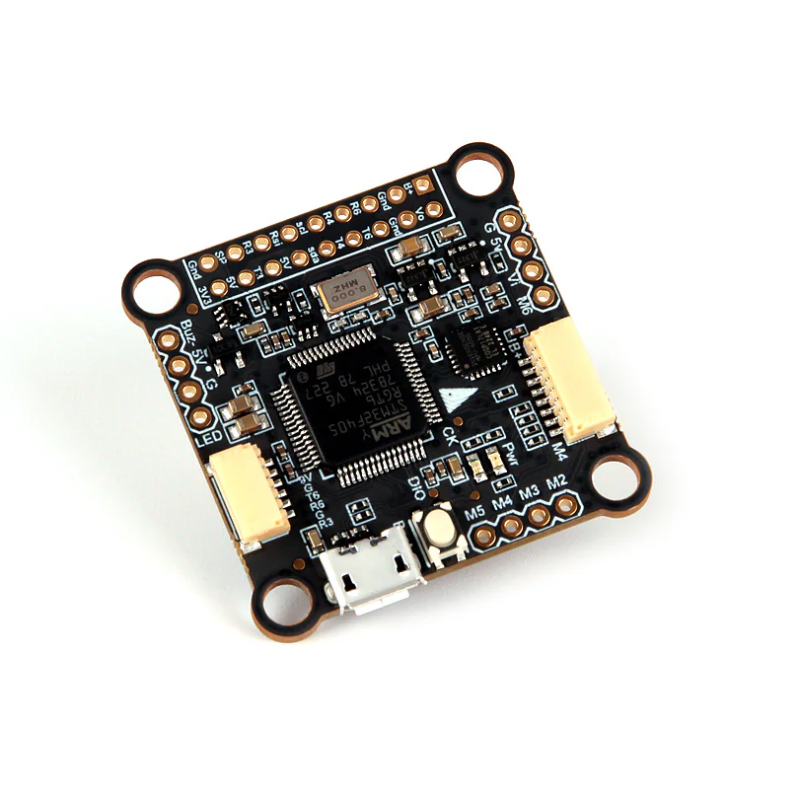

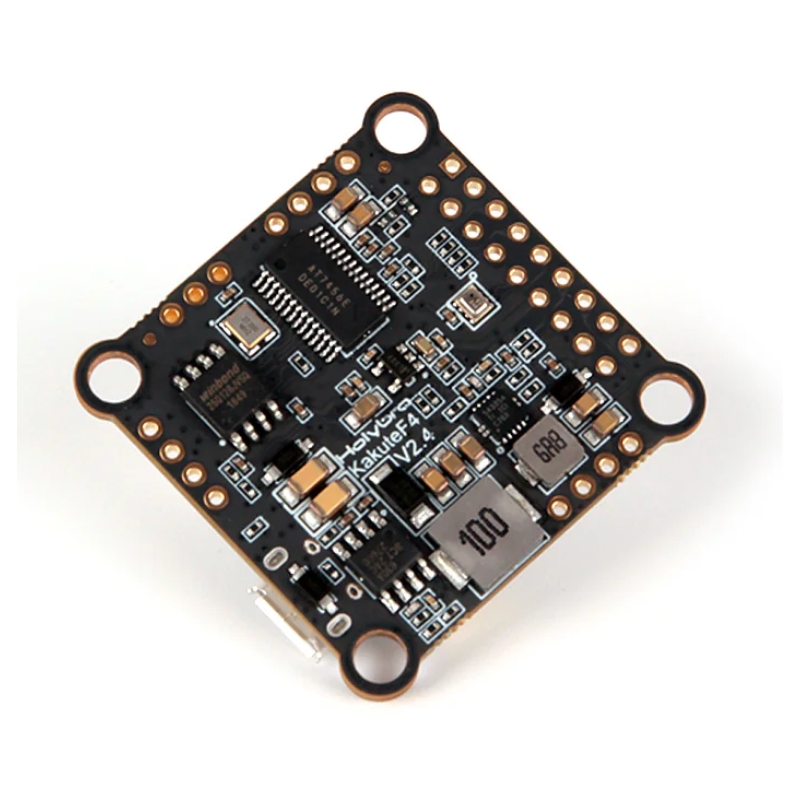

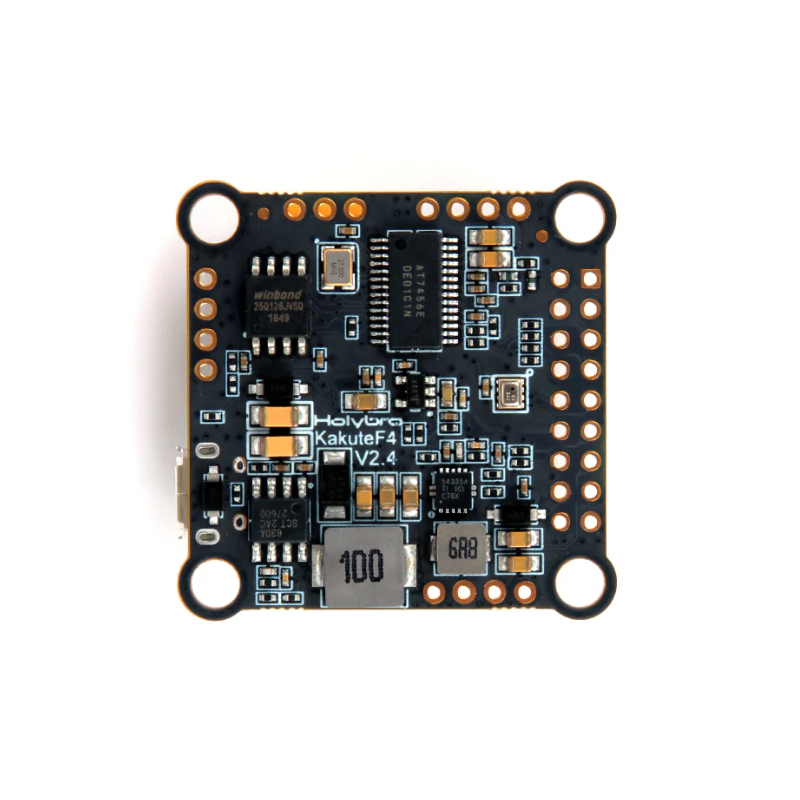

The Holybro Kakute F4 V2.4 Flight Controller includes plug-and-play DJI O3 HD camera plug, 4in1 ESC ports, barometer, OSD, 5x UARTs, logging capability with built-in flash , 5V and 9V/3A BEC, easy soldering layout and much more.

The Kakute F4 V2.4 is DJI HD ready. It has an easy plug-and-play port with an on-board 9V/A regulator designed to power your HD video transmitter like DJI O3 Air Unit & Caddx Vista while supporting analog system. It has 5x dedicated UART ports with built-in inversion for peripherals. It is also ready for autonomous flight with the on-board barometer. There are LED & buzzer pad, I2C pad (SDA & SCL) for external GPS/Magnetometers

Specification:

  • MCU - STM32F405
  • IMU - MPU6000
  • Barometer - BMP280
  • OSD - AT7456E
  • 5x UARTs (1,3,4,5,6,7)
  • 128 Mbit Dataflash chip
  • Battery input voltage: 2S-8S
  • BEC 9V/3A - Optimized for DJI O3 Air unit
  • BEC 5V/2A
  • 7x PWM Outputs (6 Motor Output, 1 LED)
  • Supports serial receivers (SBUS, iBus, Spektrum, Crossfire, ESLR).

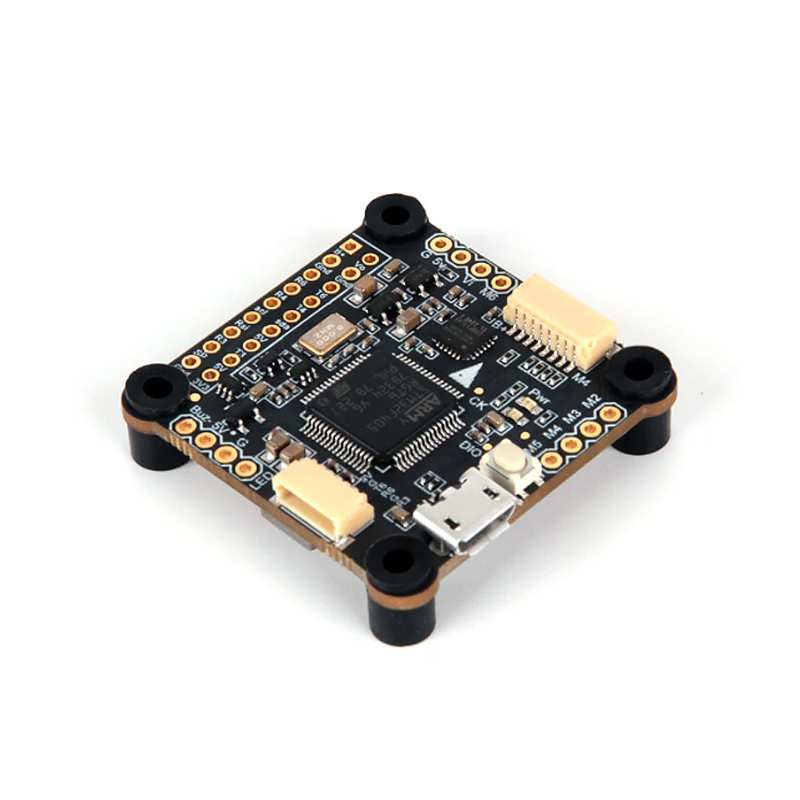

  • Mounting - 30 x 30mm, Φ4mm hole with M3 Grommets
  • Dimension - 37x37mm

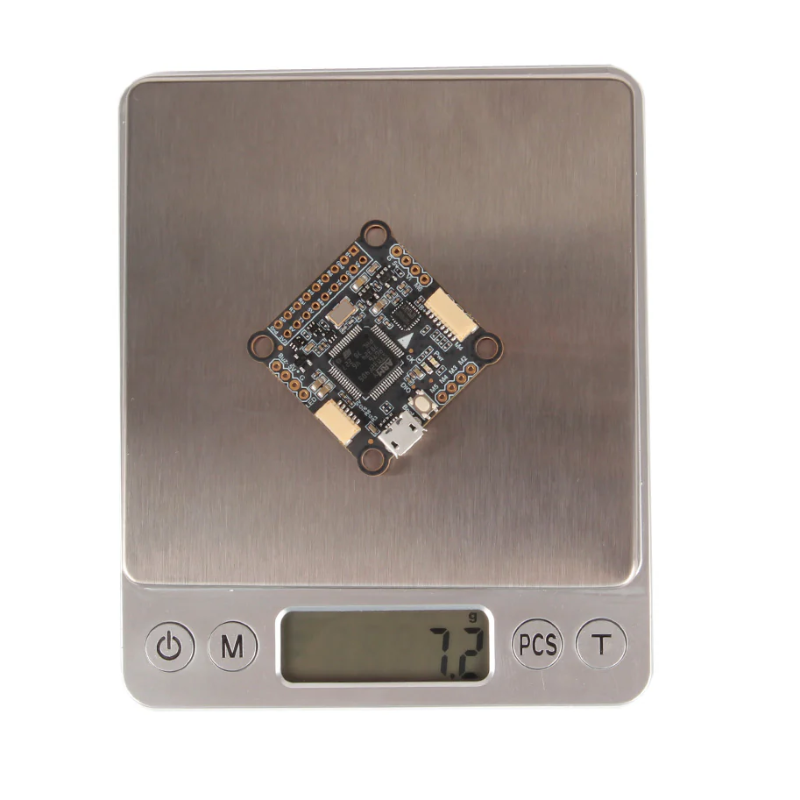

  • Weight – 7g
  • JST-SH1.0_8pin port (For 4in1 ESCs)
  • JST-SH1.0_6pin port (For DJI/Caddx HD System and other VTX)

Manual & Pin Diagram

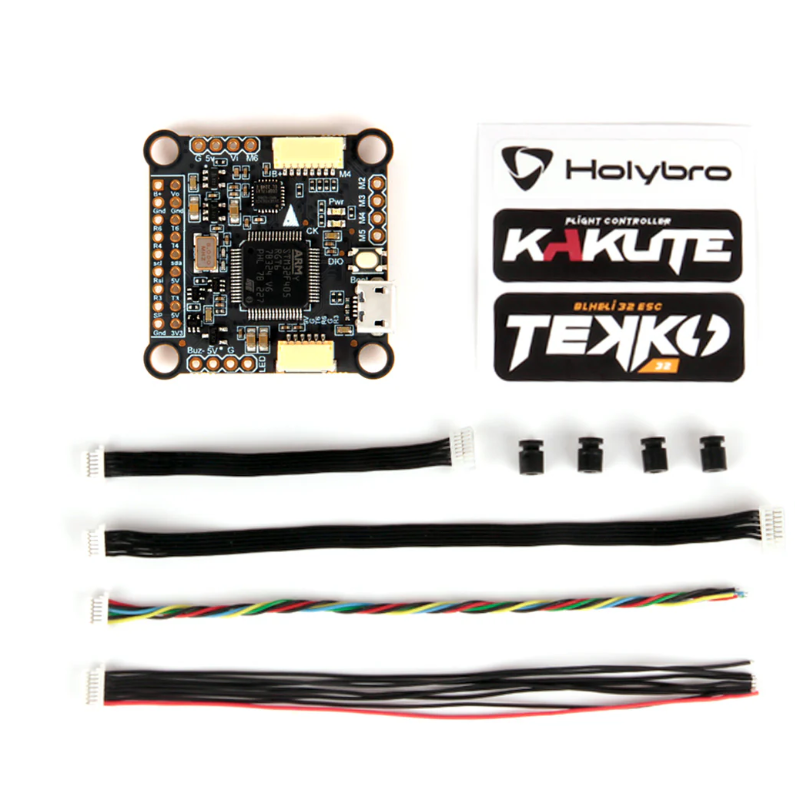

Package Includes:

  • 1x  Kakute F4 V2
  • 4x  Anti-Vibration Silicone Grommet Insert *4
  • 1x  JST SH 6pin to JST GHR 8pin 80mm &150mm cable (for DJI/Caddx HD System)
  • 1x  JST SH 6pin 100mm cable(for Caddx HD Systems)
  • 1x  JST SH 8pin 100mm cable(for ESCs)
