CUAV V5+/X7+ Carrier Base Board Flight Controller Pixhawk For FPV RC Quadcopter Helicopter
Usually ships within 24 hours
Regular price
$149.00
Couldn't load pickup availability
CUAV V5+ Carrier base Board Controller Pixhawk for FPV RC Drone Quadcopter Helicopter Flight Simulator VTOL
V5 + Controller
V5+ is a premium controller designed by the CUAV and PX4 teams and manufactured by CUAV. Based on the Pixhawk FMU v5 design standard, perfectly compatible with PX4 and ArduPilot firmware. Its modular design allows users to customize the baseboard.
V5+ Controller Feature:
- FMU v5 hardware standard, more advanced and stable than FMU v3
- Built-in shock absorption
- Support RTK centimeter-level GNSS module
- Multi-sensor redundant design
- Full model support
- Modular design, support custom baseboard
Main Parameter |
|
| Main FMU Processor | STM32F765 (32 Bit Arm Cortex -M7, 216MHz, 2MB FLASH, 512KB RAM) |
| IO Processor | STM32F100 (32 Bit Arm Cortex -M3,24MHz, 8KB SRAM) |
Sensors |
|
| Accelerometer | ICM-20602 / ICM-20689 / BMI055 |
| Gyroscope | ICM-20602 / ICM-20689 / BMI055 |
| Magnetometer | IST8310 |
| Barometer | MS5611 |
Interfaces |
|
| UART | 5 |
| I2C | 4 |
| SPI | 1 |
| CAN | 2 |
| ADC | 2 |
| PWM | 8 ~ 14 PWM outputs (6 from IO, 8 from FMU) |
| DSM/SBUS/RSSI | 1 |
| PPM IN | 1 |
| Power Interface | 2 |
| Safety Switch | 1 |
| DEBUG / F7 SWD | 1 |
| USB | 1 (Type-C) |
| TF slot | 1 |
| Rated Voltage | 4.5 ~ 5.5 V |
| USB Voltage | 5V ± 0.25 V |
| Servo Voltage | 0 ~ 36 V |
| Working Temp | -20 ~ 85℃ |
| Size | 85.5 × 42.0 × 33.0mm |
| Weight | 91g |

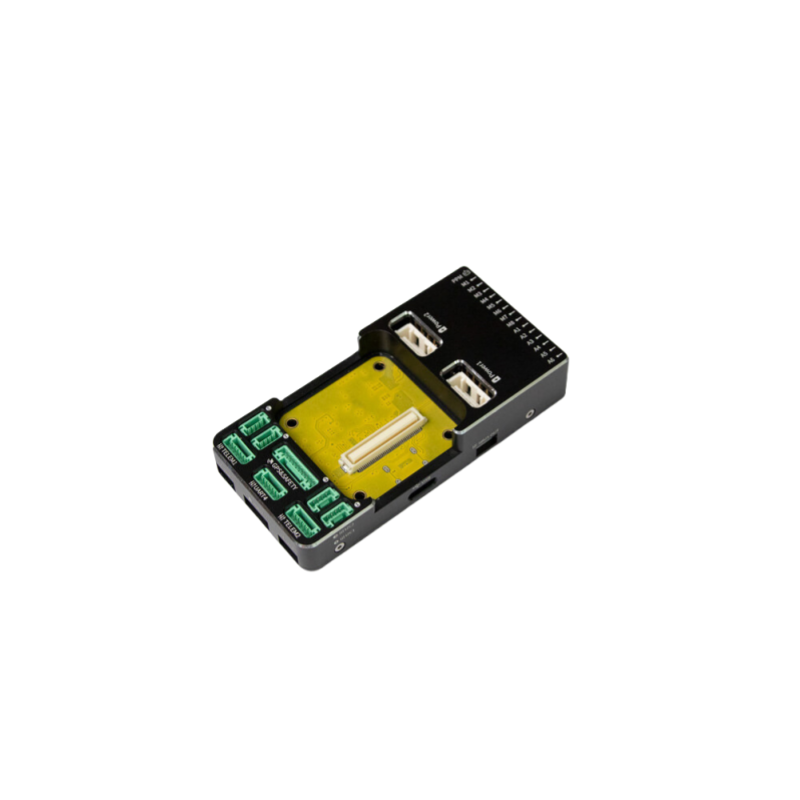

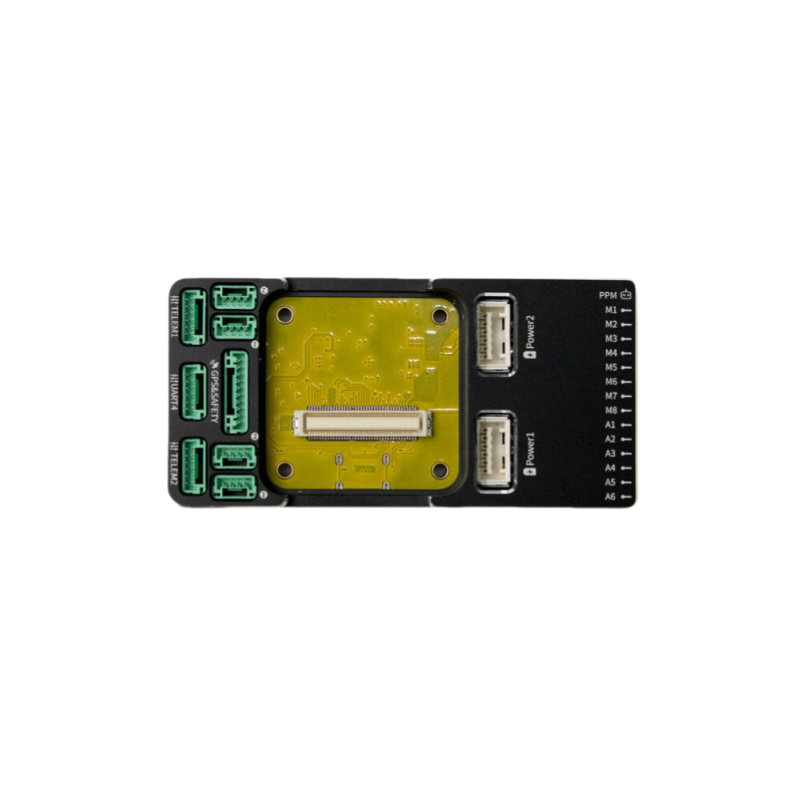

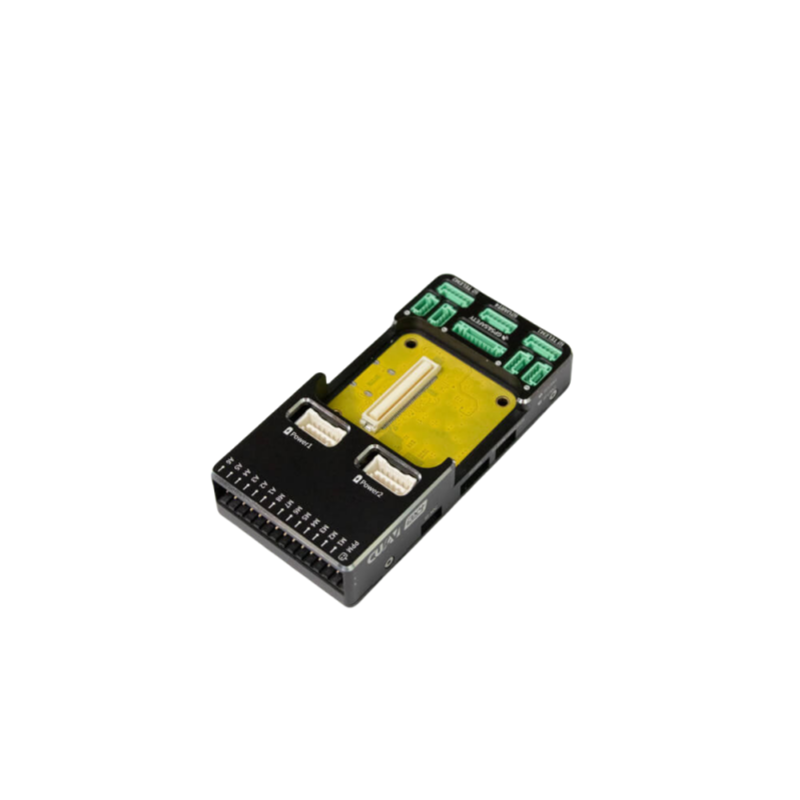

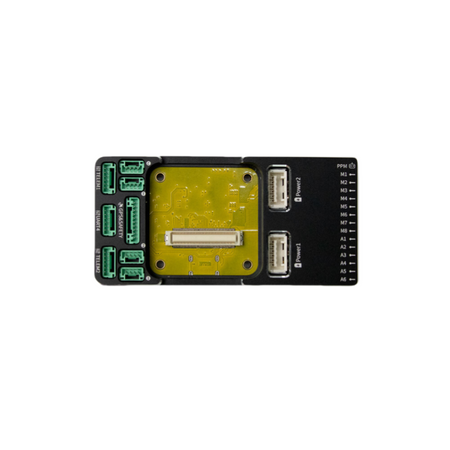

V5+ baseboard
