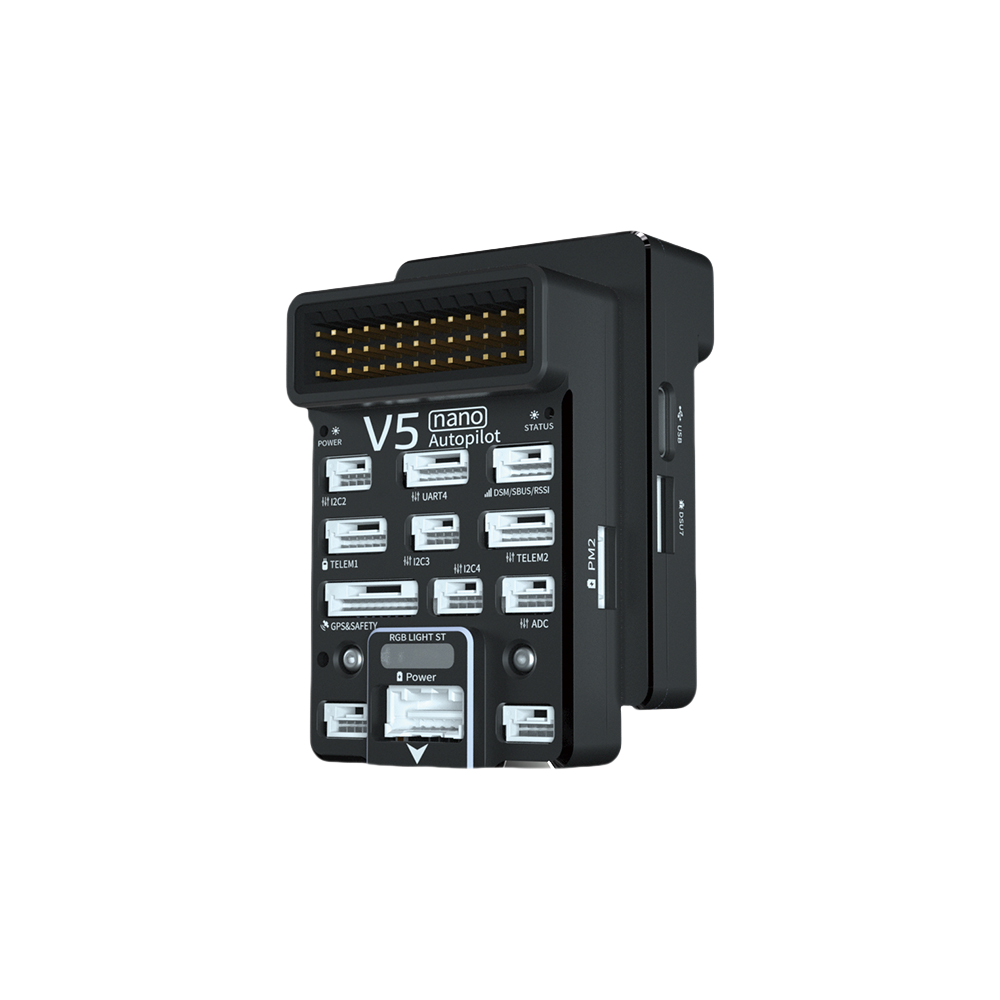

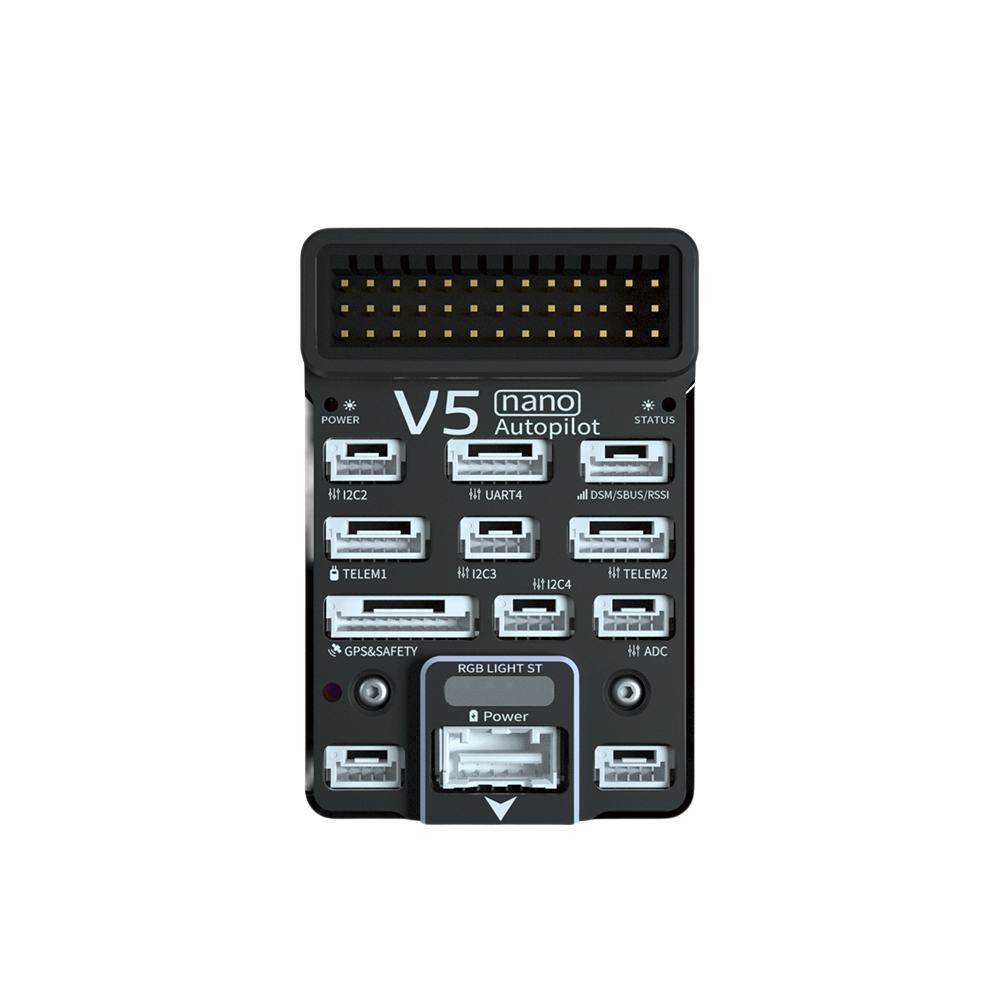

CUAV V5 Nano Drone Autopilot PX4 APM

In stock
Usually ships within 24 hours
Regular price $149.00
Options
Product details
  • Vendor Unmanned RC

please contact customer service for the stock availability

V5 Nano Controller Feature:

1– FMU v5 hardware standard design

2– Compatible with ArduPilot and PX4 firmware

3– Complete functions and compact size

4– Aviation aluminum alloy shell

Please Contact Customer Service for Stock Availability!

CUAV V5 Nano Controller Brief:

V5 nano is designed by the CUAV and PX4 teams for businesses or enthusiasts who are extremely sensitive to space but want to get the power of V5. Its design is based on the Pixhawk FMU v5 standard and is perfectly compatible with PX4 and ArduPilot firmware.

CUAV V5 Nano Controller Feature:

  • FMU v5 hardware standard design
  • Compatible with ArduPilot and PX4 firmware
  • Complete functions and compact size
  • Aviation aluminum alloy shell

CUAV V5 Nano Controller Specification:

Main Parameter
Processor STM32F765(32 Bit Arm Cortex -M7, 216MHz, 2MB FLASH, 512KB RAM)
Sensors
Accelerometer ICM-20602 / ICM-20689 / BMI055
Gyroscope ICM-20602 / ICM-20689 / BMI055
Compass IST8310
Barometer MS5611
Interfaces
UART 5
I2C 4

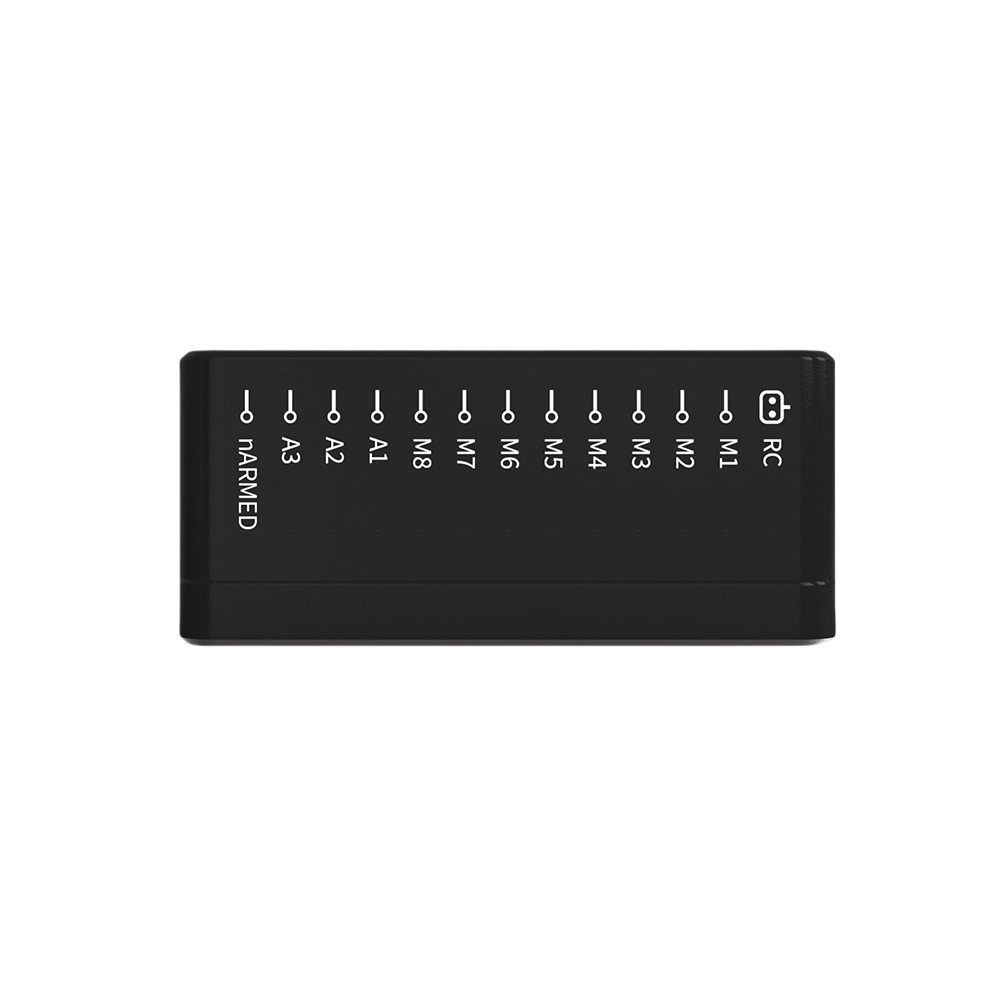

PWM Up to 11 PWM outputs(8 standard pwm output +3 optional pwm output )*
nARMED* 1
Enter the Protocol PPM/SBUS/DSM, etc.
RC IN 1
PPM IN 1
RSSI PWM or 3.3 analog voltage
CAN 2
Current and Voltage Input 1
Safety Switch 1
GPS 1
DEBUG 1
JATG 1

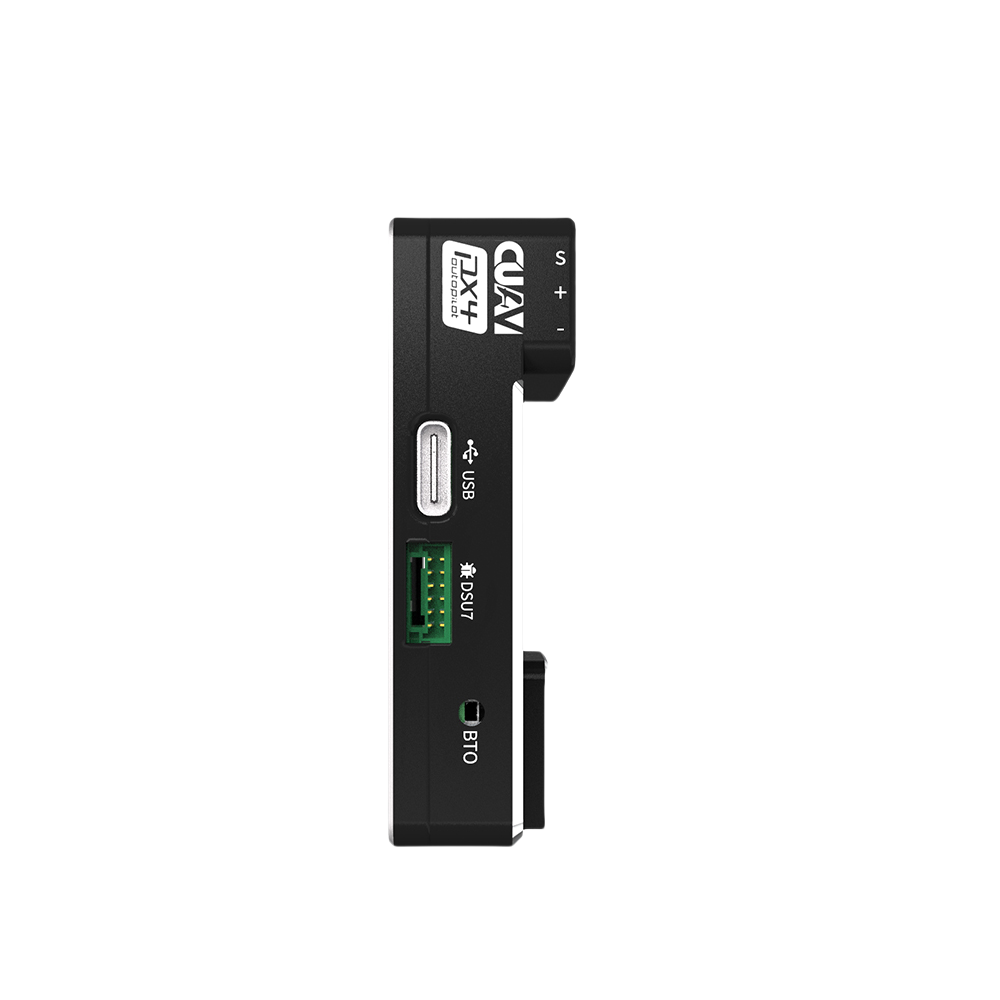

USB 1 (Type-C)
Rated Voltage 4.5 ~ 5.5 V
USB Voltage 5V ± 0.25 V
Servo Voltage 0 ~ 36 V
Operating Temperature -40 ~ 85 ℃
Size 60 × 40 × 14mm
Weight 50g

CUAV V5 Nano Controller Description:
