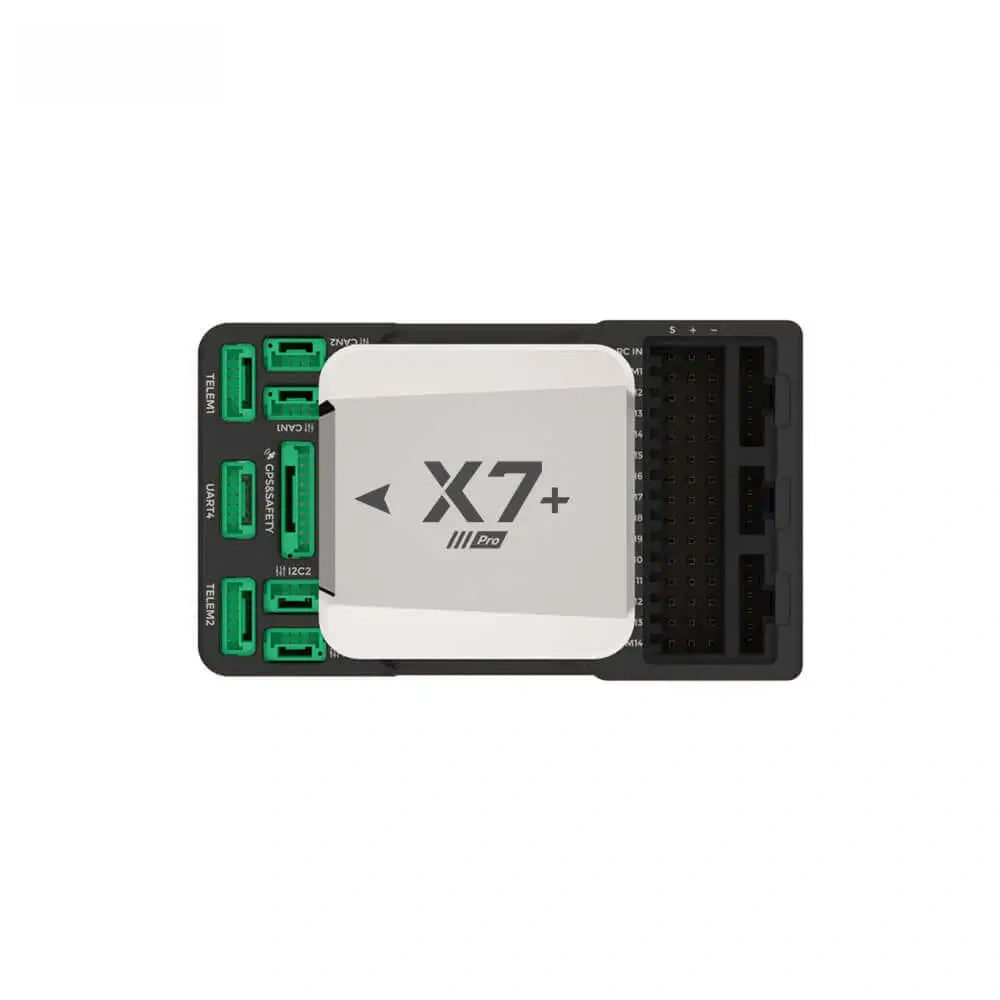

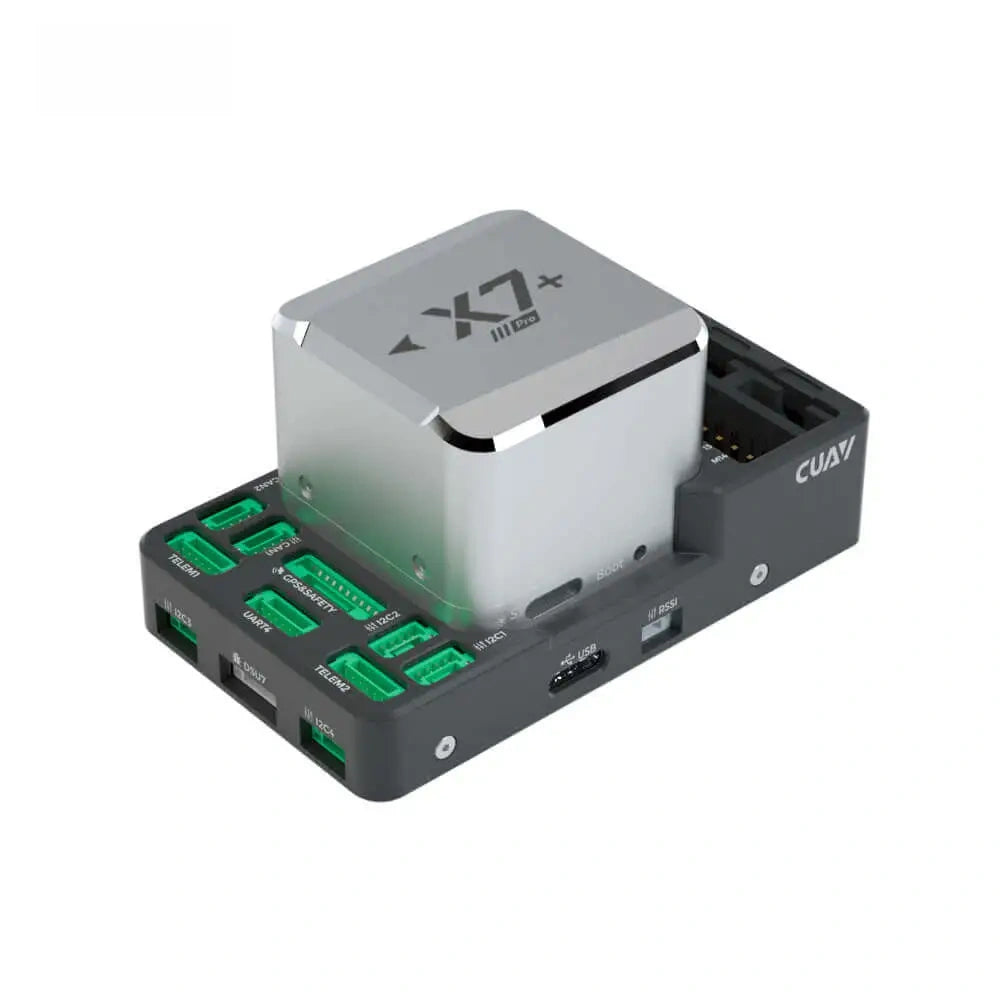

CUAV X7+ Pro Pixhawk For PX4 APM Controller
Couldn't load pickup availability
please contact customer service for the stock availability
| Weight | 1 kg |
|---|---|
| Dimensions | 30 × 20 × 10 cm |
| X7+ pro |
X7+ pro / please contact customer service for the stock availability, X7+ pro & NEO 3 GPS/ please contact customer service for the stock availability, X7+ pro & NEO 3 pro GPS / please contact customer service for the stock availability |
| Material |
Metal |
| Tool Supplies |
Assembly Category |
| Upgrade Parts/Accessories |
Ardupilot |
| RC Parts & Accs |
Speed Controller |
| Size |
77*45.5*39mm |
| Technical parameters |
KV1100 |
| Remote Control Peripherals/Devices |
Remote controller |
| For Vehicle Type |
Airplanes |
| Four-wheel Drive Attributes |
Shell/Chassis/Wing/Head |
CUAV X7+ Pro Controller Feature:
- H7 double-precision floating-point processor
- ADIS16470 sensor
- Industrial-grade RM3100 compass
- Built-in shock absorption
- 3 sets of IMUs support intelligent failover
- Support temperature compensation
- Dedicated DroneCAN power interface
- Modular design, support customized baseboard
CUAV X7+ Pro Controller Brief:
X7+ Pro is a high-end intelligent controller developed by CUAV for industry and industrial applications. It is equipped with a high-performance STM32H7 processor with a processing speed of up to 480Mhz and supports double floating-point operations. It is also equipped with an ADIS16470 automotive-grade sensor with excellent gyroscope and accelerometer performance, supports low-error long-flight attitude calculation, and is equipped with an industrial-grade RM3100 magnetometer, which has strong anti-magnetic interference capabilities. The excellent processor performance and IMU performance enable unmanned system equipment to have better stability and anti-interference capabilities in complex environments
CUAV X7+ Pro Controller Specification:
Main Parameter |
|
| Processor | STM32H743(Arm Cortex -M7,480MHz,2MB FLASH, 1MB RAM) |
Sensors |
|
| Accelerometer | ADIS16470 / ICM-42688-P / ICM-20689 |
| Gyroscope | ADIS16470 / ICM-42688-P / ICM-20689 |
| Compass | RM3100 |
| Barometer | MS5611 *2 |
Interfaces |
|
| UART | 5 |
| I2C | 6 (2 interfaces are integrated in GPS&SAFETY&UART4) |
| PWM OUT | 14 ( M1~M12 Support DSHOT protocol) |
| RC IN | 1 (Support PPM SBUS DSM) |
| RSSI | PWM or 3.3V analog voltage |
| CAN | 2 |
| Power IN | 2 (Power A for ADC protocol, Power C for CAN protocol) |
| Safety Switch | Integrated into the GPS & SAFETY port |
| GPS Port | 2 |

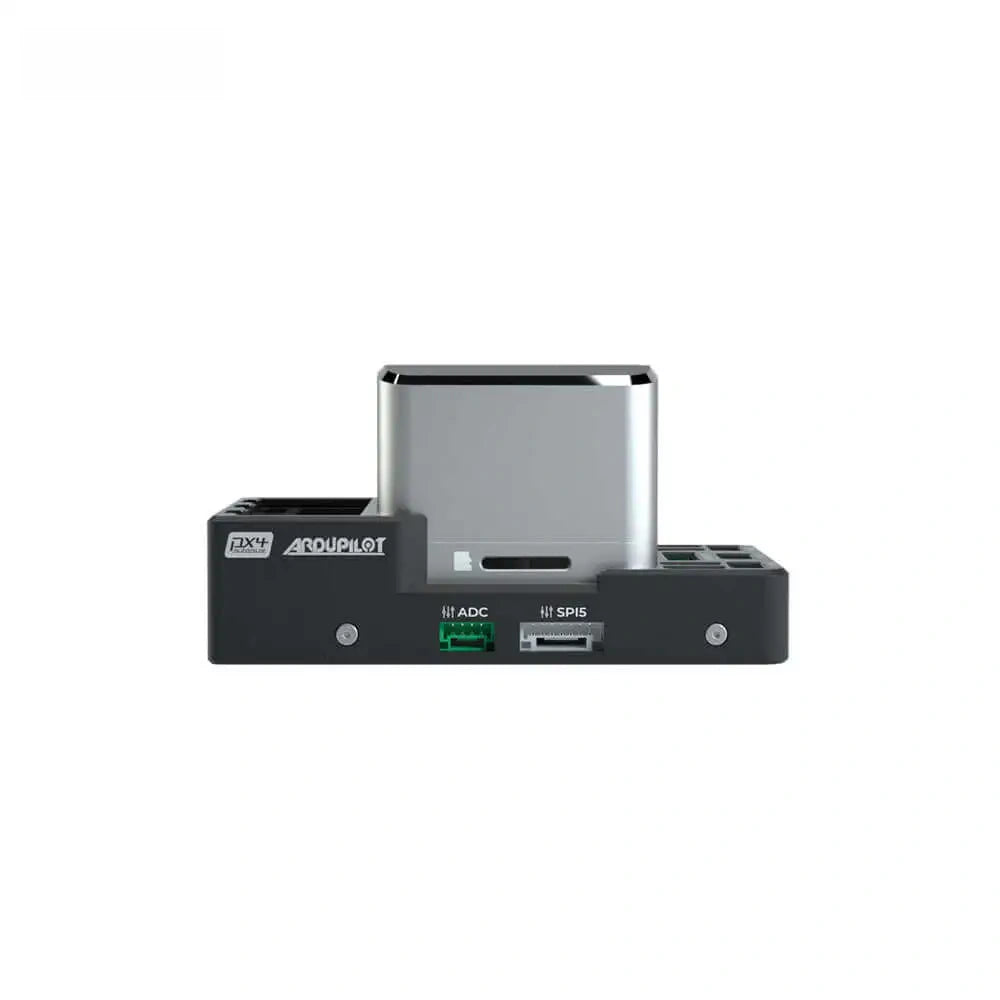

| ADC | 1 |
| DEBUG | 1 |
| JATG | 1 |

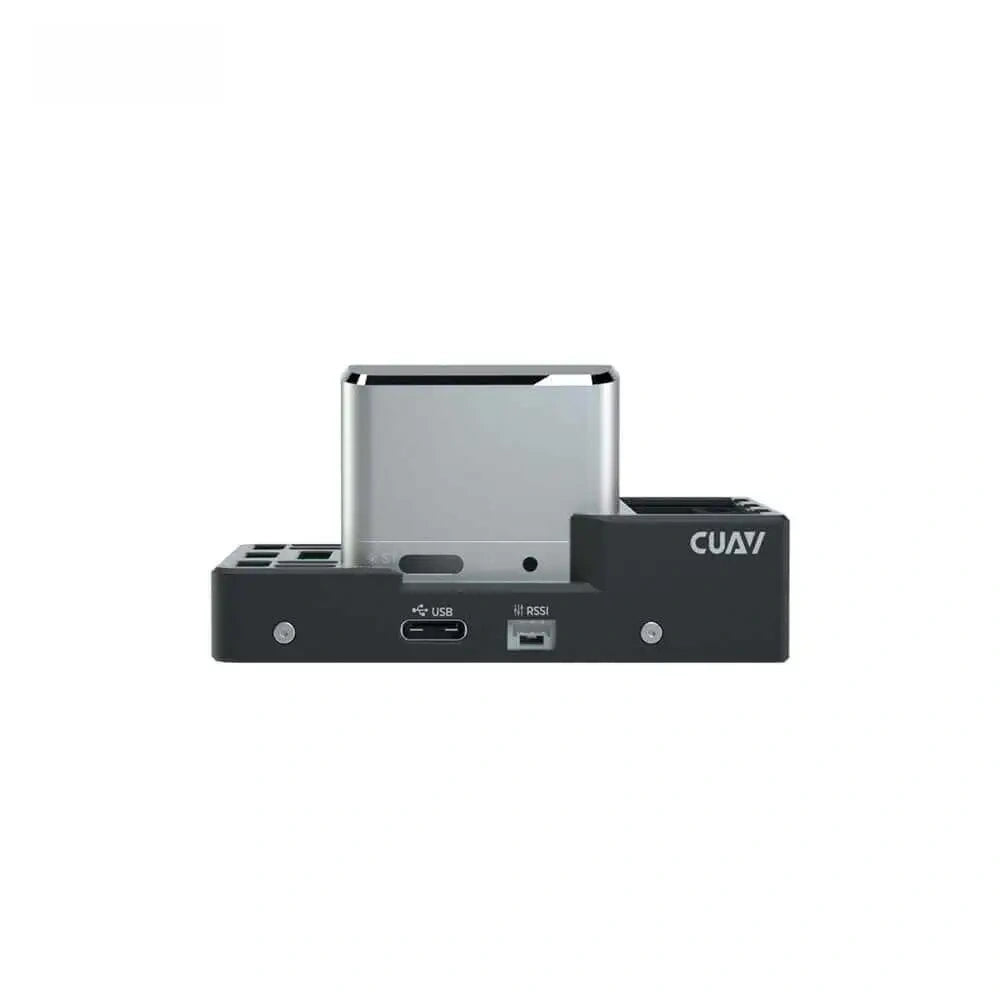

| USB | 1 |
| Rated Voltage | 14.5 ~ 5.5 V |
| USB Voltage | 4.75 ~ 5.25 V |
| Servo Voltage | 0 ~ 10 V |
| Working Temp | -20 ~ 85 ℃ |
| Humidity | 5% ~ 95%（Does not condense） |
| Size | 77.0 × 45.5 × 39.0mm |
| Weight | 101g |
CUAV X7+ Pro Controller Description:
