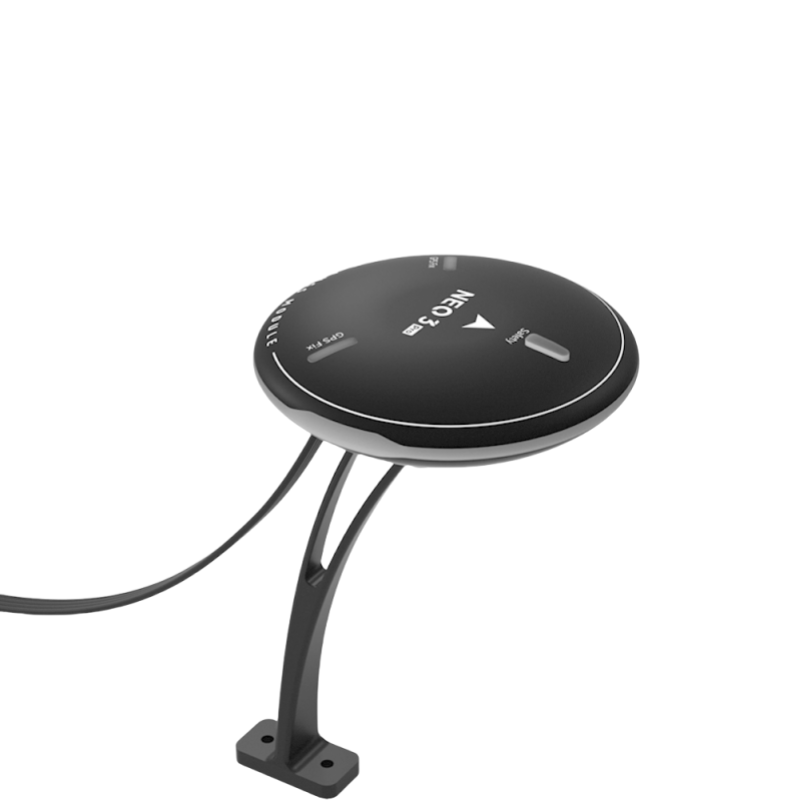

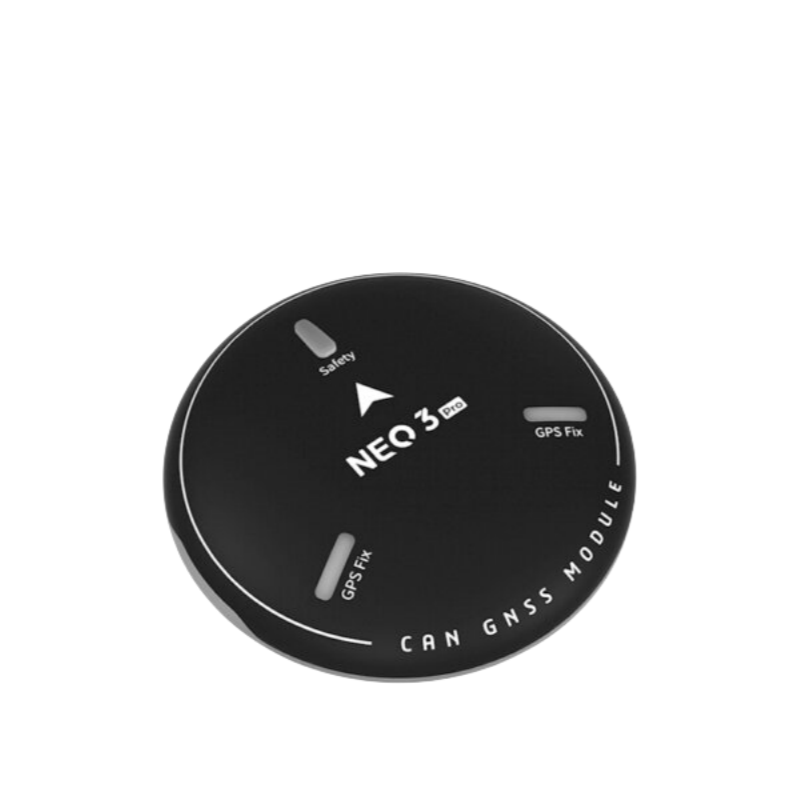

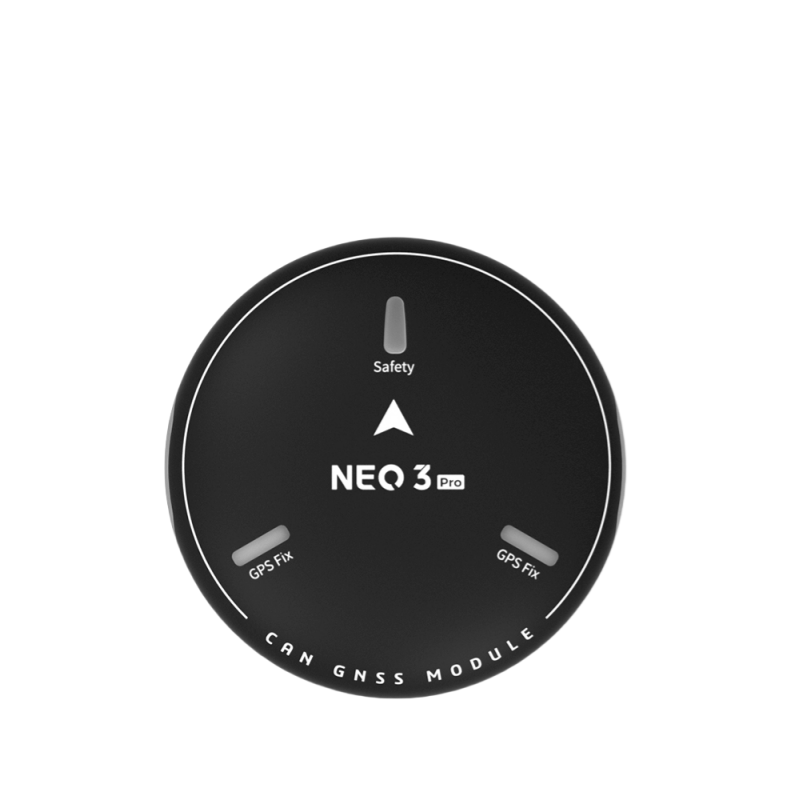

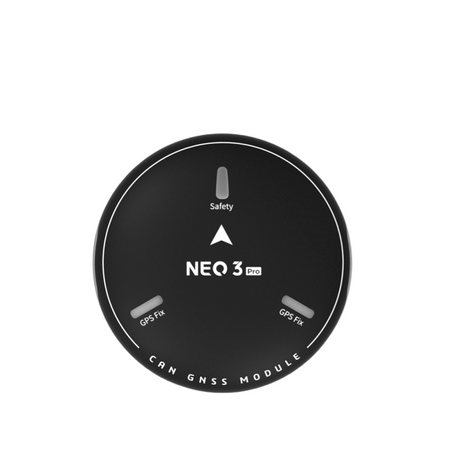

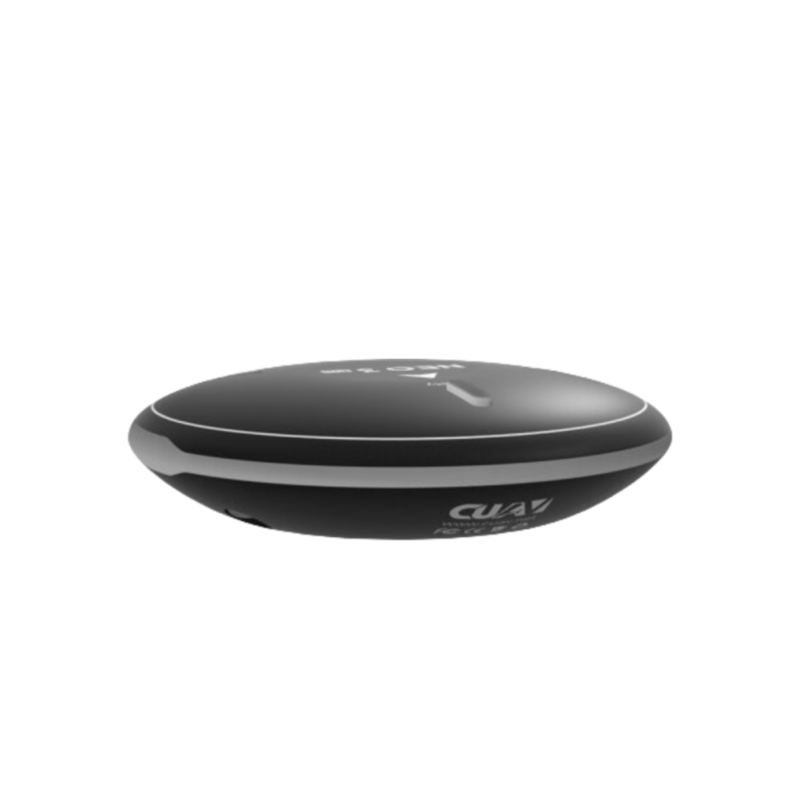

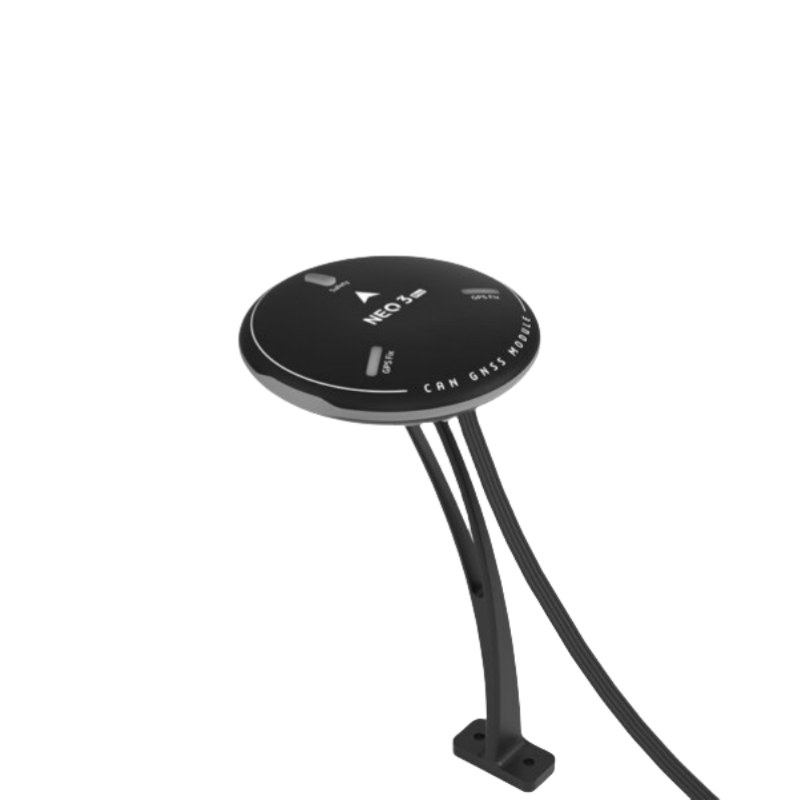

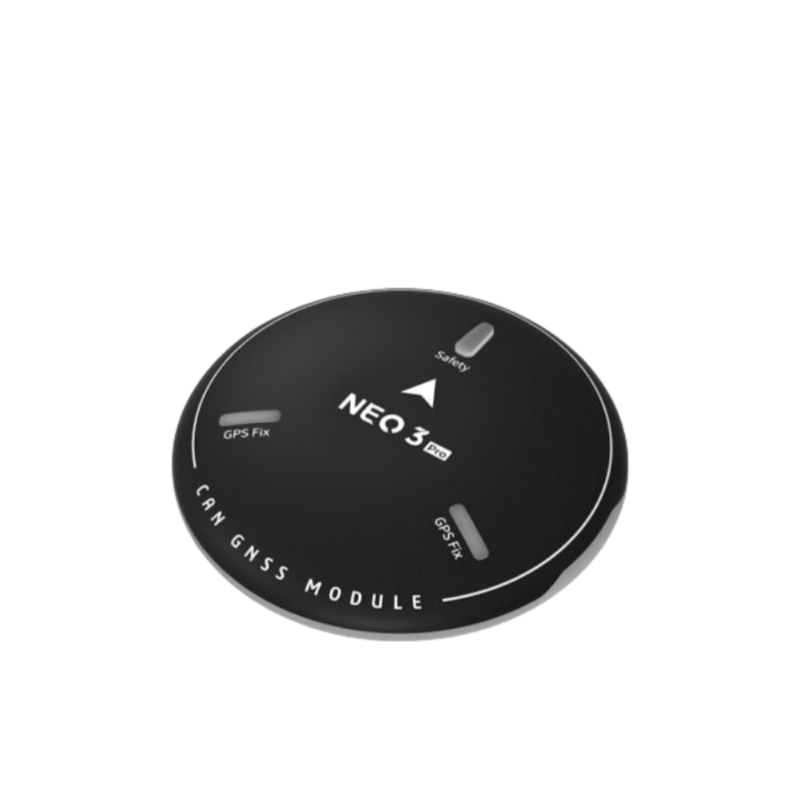

NEO 3 Pro GNSS Module Brief:
NEO 3 Pro is an M9N navigation product using the DroneCAN communication protocol. Integrated positioning system, magnetic compass, control status light, control siren, barometer in one, an industrial-grade magnetic compass, can receive four major satellite systems navigation and positioning signals at the same time.
| Weight | 0.5 kg |
|---|---|
| Dimensions | 10 × 10 × 5 cm |
| Processor |
STM32F412 |
| Sensor |
Compass: IST8310 ; Barometer: MS5611 |
| RGB Driver |
NCP5623C |
| Buzzer |
Passive Buzzer |
| Safety Switch |
Physical Button |
| GNSS Receiver |
UBLOX M9N |
| Number of Concurrent GNSS |
4(BDS、GALILEO、GLONASS、GPS) |
| Frequency Band |
GPS:L1C/A |
| GNSS Augmentation System |
SBAS:WAAS,EGNOS,MSAS |
| Horizontal Accuracy |
2.0m (Highest measured value is 0.7m) |
| Speed Accuracy |
0.05m/s |
| Acquisition |
Cold Start:24s |
| Number of Satellites (MAX) |
32+ |
| Sensitivity |
Tracking&Nav:-167dBm |
| Protocol |
UAVCAN |
| Wave Filtering |
SAW+LNA+SAW |
| Supported Controller |
CUAV series; Pixhawk series |
| Port Type |
GHR-04V-S |
| InputVoltage |
4.7~5.2V |
| Operating Temperature |
-10~70°℃ |
| Size |
60*60*16MM |
| Weight |
33g |
NEO 3 Pro GNSS Module Feature:
- u-blox M9N satellite receiver, accuracy up to 0.7 m
- Support BeiDou, Galileo, GLONASS, GPS four satellite systems
- Support simultaneous reception of four satellite systems
- Triple filters design
NEO 3 Pro GNSS Module Specification：
Product Parameters |
|
| Processor | STM32F412(32 Bit Arm® Cortex®-M4,100MHz, 512KB FLASH, 256KB RAM) |
| Compass | RM3100 |
| Barometer | MS5611 |
| GNSS Receiver | UBLOX NEO M9N |
| Buzzer | Passive buzzer |
| Safety Switch | Physical button |
| Number of Concurrent GNSS | 4(BDS、GALILEO、 GLONASS、 GPS) |
| GNSS Augmentation System | SBAS：WAAS,EGNOS,MSAS QZSS：L1s(SAIF) other：RTCM3.3 |
| Frequency Band | GPS：L1C/A GLONASS：L10F BDS：B1I GALILEO：E1B/C |
| Horizontal Accuracy | 2.0m(Highest measured value is 0.7m) |
| Speed Accuracy | 0.05m/s |
| Nav. update rate | 25Hz(Max) |
| Protocol | DroneCAN |
| Port Type | GHR-04V-S |
| Acquisition | Cold start：24s Hot start：2s Aided start：2s |
| Number of Satellites(MAX) | 32+ |
| Sensitivity | Tracking and nav-167dBm Cold start Hot start-148dBm Reacquisition -160dBm |
| Supported Controller | CUAV series,Pixhawk series |
| Wave Filtering | SAW+LNA+SAW |
| Anti Electromagnetic/ Radio Frequency Interference | EMI+RFI |
| Upgrade firmware | Support |
| Support Control Type | ArduPilot/PX4 |
| Input Voltage | 4.7-5.2V |
| Operating Temperature | -10 ~ 70℃ |
| Size | 60 × 60 × 16mm |
| Weight | 33g |
