This is for those who start learning DIY drones from a simple quadcopter drone. Each package includes the accessories you need for assembly and final flight testing. You can choose a DIY kit that suits you based on the accessories included in each package (the pictures will explain which accessories are included).
Compared with other quadcopters, these kits are reliable and cost friendly, highly playable and highly modifiable. Not only suitable for beginners, but also suitable for schools and drone companies scientific research projects。
DIY drones are a time- and money-consuming hobby, and I hope you find pleasure in it.
Size:
Payload and endurance
Functions:
Foldable:
Camera with gimbal version:
Specifications (X550):
Dimension: 550*300mm
Diagonal Wheelbase: 550mm
Weight: 658.5 g (frame kit)
Max takeoff weight: 4kg
Max Pitch Angle: 30°
Max Ascent Speed: 5 m/s
Max Descent Speed (vertical): 3 m/s
Max Wind Resistance: 10 m/s
Max Service Ceiling Above Sea Level: 1000 m
Max Flight Time: 25 min (no payload with MAD 6S 8000mAh Lipo battety)
Specifications (X650):
Dimension: 650*300mm
Diagonal Wheelbase: 650mm
Weight: 689 g (frame kit)
Max takeoff weight: 5kg
Max Pitch Angle: 30°
Max Ascent Speed: 5 m/s
Max Descent Speed (vertical): 3 m/s
Max Wind Resistance: 10 m/s
Max Service Ceiling Above Sea Level: 1000 m
Max Flight Time: 40 min (no payload with MAD 6S 12000mAh Lipo battety)

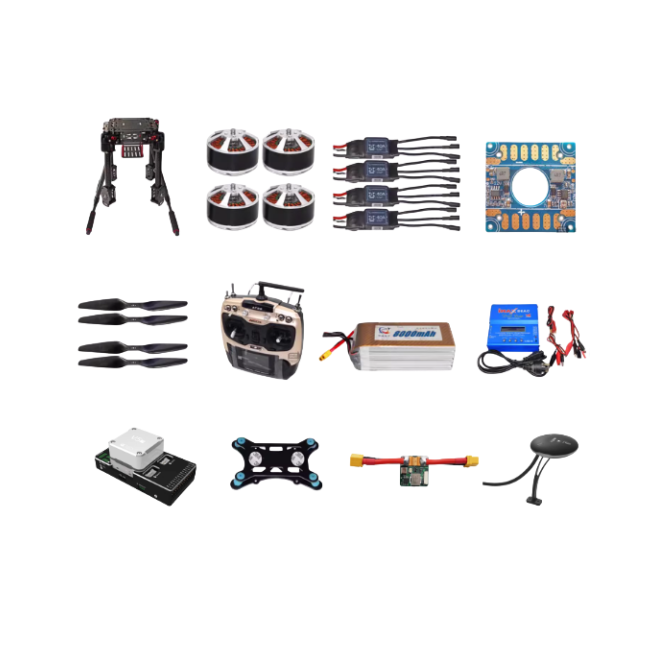

X550/X650 Combo A including:
Carbon fiber frame (either X550 or X650)*1
4120 brushless motors 330KV*4
40A ESCs*4
12V PDB*1
15 inch carbon fiber propeller CW CCW pair*2
AT9S radio controller transmitter and receiver*1
6S 8000mAh 25C lipo battery*1
B6AC lipo battery smart charger*1
Pixhawk 2.4.8 with GPS ( or CUAV Pixhawk V5 with GPS)*1
GPS stand*1
APM power module (either pixhawk 2.4.8 or CUAV V5 version depends on flight controller)*1
Flight controller anti-vibration plate*1

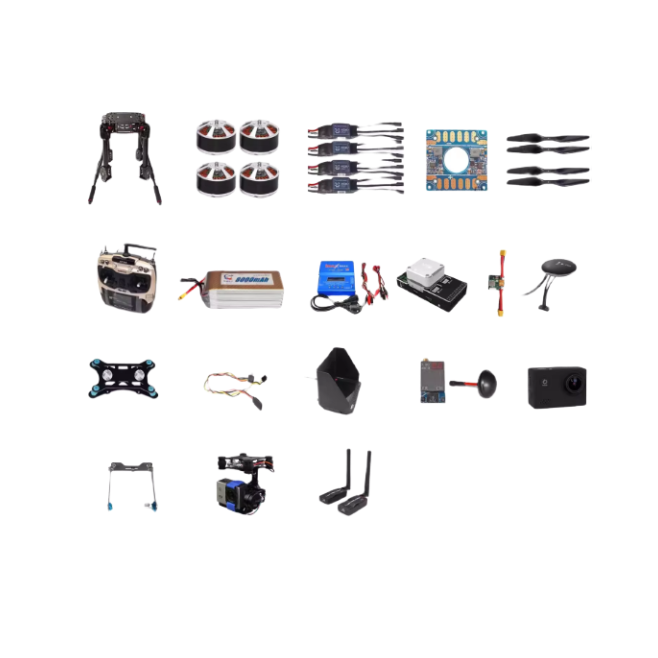

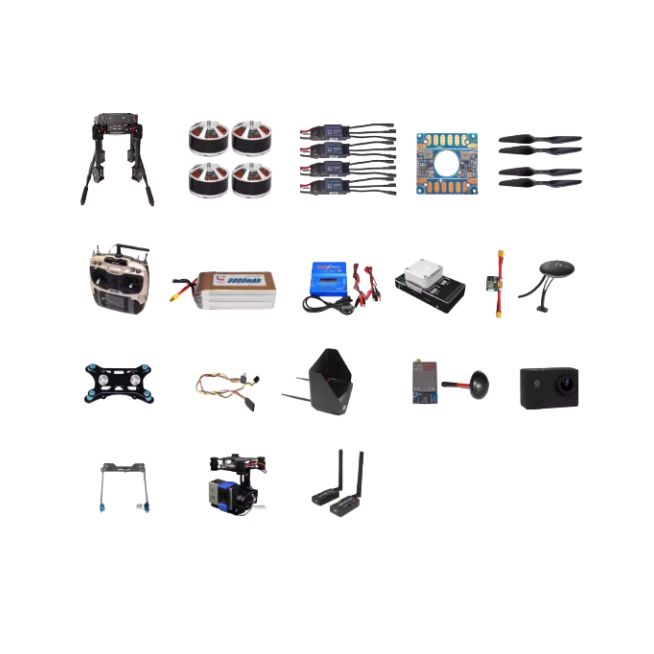

X550/X650 Combo B including:
Carbon fiber frame (either X550 or X650)*1
4120 brushless motors 330KV*4
40A ESCs*4
12V PDB*1
15 inch carbon fiber propeller CW CCW pair*2
AT9S radio controller transmitter and receiver*1
6S 8000mAh 25C lipo battery*1
B6AC lipo battery smart charger*1
Pixhawk 2.4.8 with GPS ( or CUAV Pixhawk V5 with GPS)*1
GPS stand*1
APM power module (either pixhawk 2.4.8 or CUAV V5 version depends on flight controller)*1
Flight controller anti-vibration plate*1
7 inch FPV screen*1
video link with antenna *1
action camera 1080P*1
display stand*1
brushless gimbal for action camera*1
V5 datalink (ground and air)*1
video OSD module*1
OSD and video cables*1
