MAD M9 Powerful Heavy Lifting Motors

Regular price $267.00
Unit price  per
Tax included.

This package includes: 1x AD M9 Powerful Heavy Lifting Motors

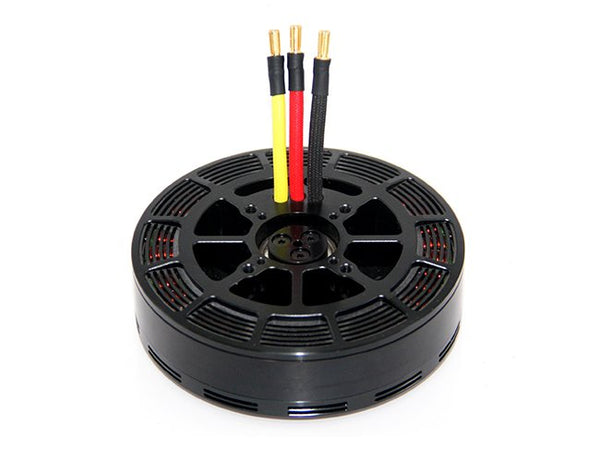

MAD M9 Powerful rc Motors
  • Very high efficient. Designed for rigorous conditions and endurance flight
  • Max thrust 14.3kg @12S with 32in prop, more power and efficient than same thrust motors in the market. Ultra lightweight, only weighs 420g.
  • Over-sized durable bearings for increased life, durability
  • Water and dust resistant. IP35 degree of protection
  • Motor mounting holes standarization

MAD M9 POWERFUL RC MOTORS

INDUSTRY PRO EDITION UAV motor is designed to achieve waterproof and dustproof IP35 degree of protection. Design compatibility of mounting holes for propeller and setup installation. High performance and low power consumption at high voltage applications.

DESIGNED FOR RIGOROUS CONDITIONS

  • Water and dust resistant
  • IP35 degree of protection
  • Internal fan for active heat dissipation

OVER-SIZED DURABLE BEARINGS

  • For increased life, durability
  • withstand the damage while occasionally hard Landing

PROPELLER INSTALLATION COMPATIBILITY

multiple propeller mounting options

4 x M3 Ø20 mm

MOTOR SETUP COMPATIBILITY

  • Mounting holes standardization
  • 4 x M3 Ø30 mm
    4 x M4 Ø32 mm
    4 x M3 Ø50 mm

SPECIFICATION

MAD M9 C12 IPE
Configuration 36N42P
RPM/V 100KV
Shaft Diameter 15 MM
Motor Dimensions 98.5 x 27 mm
Heat Dissipation YES
Internal Resistance 67 mΩ
Rotor Balanced YES
Degree of Protection IP35
Motor Weight 410g
Product Boxed Weight 750 g
Maximum Thrust 14320 g (12S) - 32”
Efficiency at 5000g Thrust 11.0 g/W
Propeller Mounting Holes 4 x M3 Ø20 mm
Motor Mounting Holes 4 x M3 Ø30 mm
Wire Winding Extended 150 mm
Propeller Adapter 1pc
Additional Accessories 3x Bullet Connector Set
3x Heat Shrink Tubes
4x M3 10mm/4x M4 10mm
2x Carbon Prop Cover
1x MAD Stickers
2x Black Foam with Hole

RECOMMENDATIONS

Propeller size 28” - 32” 12S Takeoff Weight 3000 - 8000 g/rotor 12S
