MAD M17 Heavy Lift Drone Motors

Regular price $326.00
Unit price  per
Tax included.

This package includes: 1x MAD M17 Heavy Lift Drone Motors

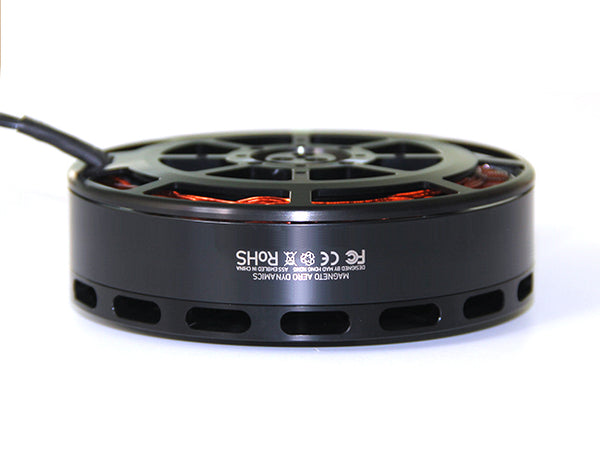

MAD M17 Heavy Lift Drone Motors
  • Very high efficient. Designed for rigorous conditions and endurance flight
  • More power than M6C12, max thrust 13.5kg @12S with 22in prop.
  • Only weighs 350g
  • Over-sized durable bearings for increased life, durability
  • Water and dust resistant. IP35 degree of protection
  • Motor mounting holes standarization

MAD M17 HEAVY LIFT DRONE MOTORS

INDUSTRY PRO EDITION UAV motor is designed to achieve waterproof and dustproof IP35 degree of protection. Design compatibility of mounting holes for propeller and setup installation. High performance and low power consumption at high voltage applications.

OVER-SIZED DURABLE BEARINGS

  • For increased life, durability
  • withstand the damage while occasionally hard Landing

PROPELLER INSTALLATION COMPATIBILITY

multiple propeller mounting options

4 x M3 Ø20 mm

DESIGNED FOR 12S VOLTAGE

  • High performance and low power consumption at high voltage applications.

MOTOR SETUP COMPATIBILITY

  • Mounting holes standardization
  • 4 x M3 Ø30 mm
    4 x M4 Ø32 mm
    4 x M3 Ø50 mm

SPECIFICATION

MAD M17 IPE
Configuration 36N30P
RPM/V 100KV
Motor Dimensions 118 x 35 mm
Internal Resistance 87 mΩ
Rotor Balanced Yes
Heavy Duty Design Yes
Degree of Protection IP35
Motor Weight 800g
Product Boxed Weight 1075 g
Maximum Thrust 22000 g (12S)
Efficiency at 12000g Thrust 6.23 g/W
Propeller Mounting Holes 4 x M3 Ø20 mm
Motor Mounting Holes 4 x M3 Ø30 mm
4 x M4 Ø32 mm
4 x M3 Ø50 mm
Wire Winding Extended 150 mm
Propeller Adapter 1PC
Additional Accessories 3x Bullet Connector Set
3x Heat Shrink Tubes
2x M3 10mm
2x Carbon Prop Cover
1x MAD Stickers
2x Black Foam with Hole

RECOMMENDATIONS

Propeller size 30" - 36" 12S Takeoff Weight 10000- 18000 g/rotor 12S
