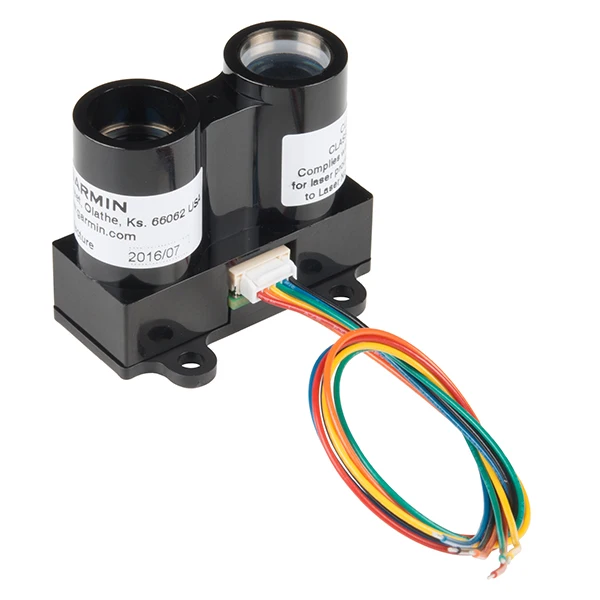

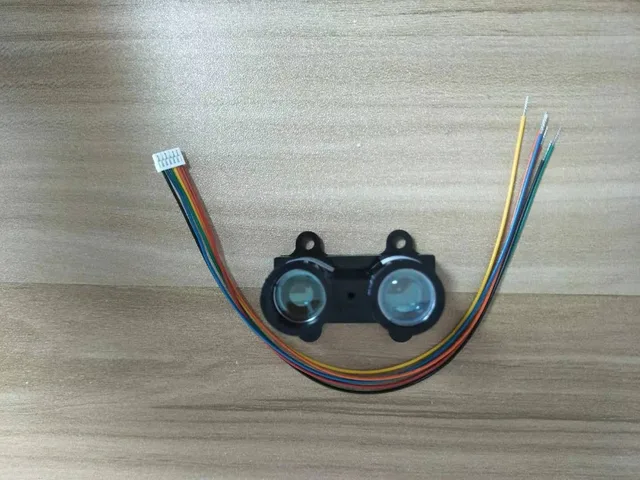

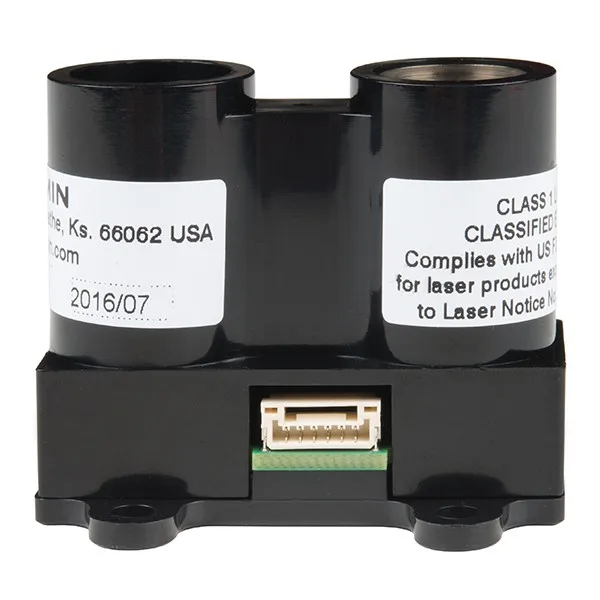

Pixhawk lite Laser sensor LIDAR Lite V3

Regular price $358.00 Sale price $230.00
Unit price  per
Tax included.

HTB1y8pkNpXXXXapaXXXq6xXFXXXT

Please click to download test code with Arduino and document:

http://www.goembed.com/index.php/Community/post/tpoId/131

High-performance Optical Distant Measurement Sensor

  • Reliable and powerful ranging and proximity sensor for drone, robot or unmanned vehicle applications
  • Compact, lightweight with low power consumption
  • User-configurable allows adjustment between accuracy, operating range and measurement time
  • Communication via I2C and PWM
  • Requires a power source and an external micro-controller running an application



When space and weight requirements are tight, the LIDAR-Lite v3 soars. It’s the ideal compact, high-performance optical distant measurement sensor solution for drone, robot or unmanned vehicle applications. Using a single chip signal processing solution along with minimal hardware, this highly configurable sensor can be used as the basic building block for applications where small size, light weight, low power consumption and high performance are important factors.

Features:

  • Unit size (HxWxD): 40 x 48 x 20 mm
  • Weight: 22 g (0.77 oz)
  • Resolution: 1 cm
  • Accuracy: +/- 2.5 cm at distances greater than 1 meter. Refer to operating manual for complete operating specifications.
  • Range: 0-40 meters
  • Update rate: up to 500 Hz
  • Interface: I2C or PWM
  • Power (operating voltage): 4.75-5 VDC; 6 V Max
  • Current consumption: 105ma, idle; 130ma, continuous
  • Operating temperature: -20 to 60° C
  • Laser wave length/Peak power: 905 nm/1.3 watts
  • Beam divergence: 4 m Radian X 2 m Radian
  • Optical aperture: 12.5 mm
